UAV-1004234-001, AV-30-E Installation Manual 78
Rev H

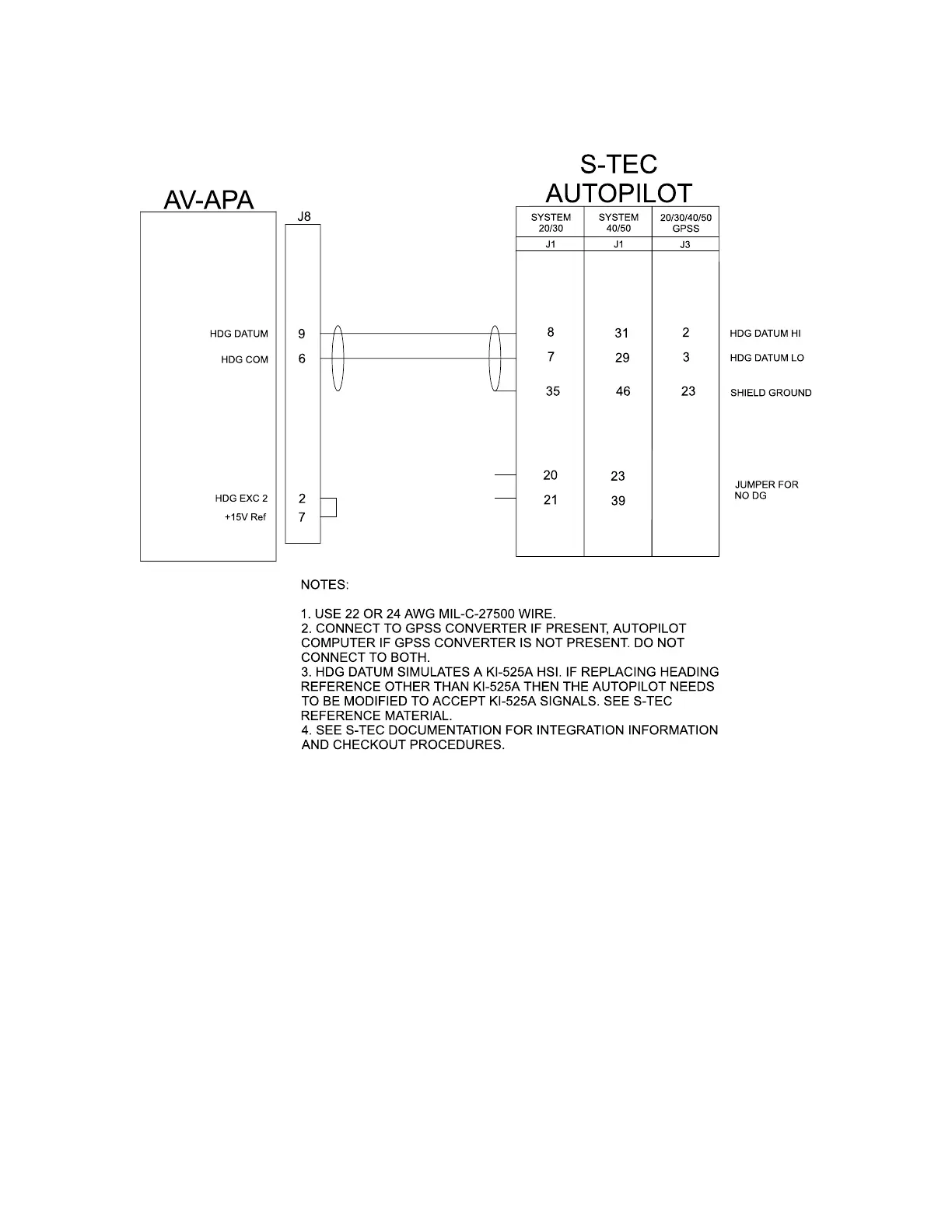

Figure 27 - AV-APA – S-TEC Interconnect Drawing
Ground wire shields to AV-APA connector backshells as depicted in
Figure 14 - Shielded Cable and Figure 15 - Cable Shields and Ground
Strap.
Secure harness to the AV-APA using the included screws.
11.4.7 Ground Checkout
See checkout guidance in §13.2.11.
