uAvionix AV-30-E - Page 77

UAV-1004234-001, AV-30-E Installation Manual 77
Rev H
Once confirming that the autopilot is configured correctly, use the
following wiring diagrams to build a harness:

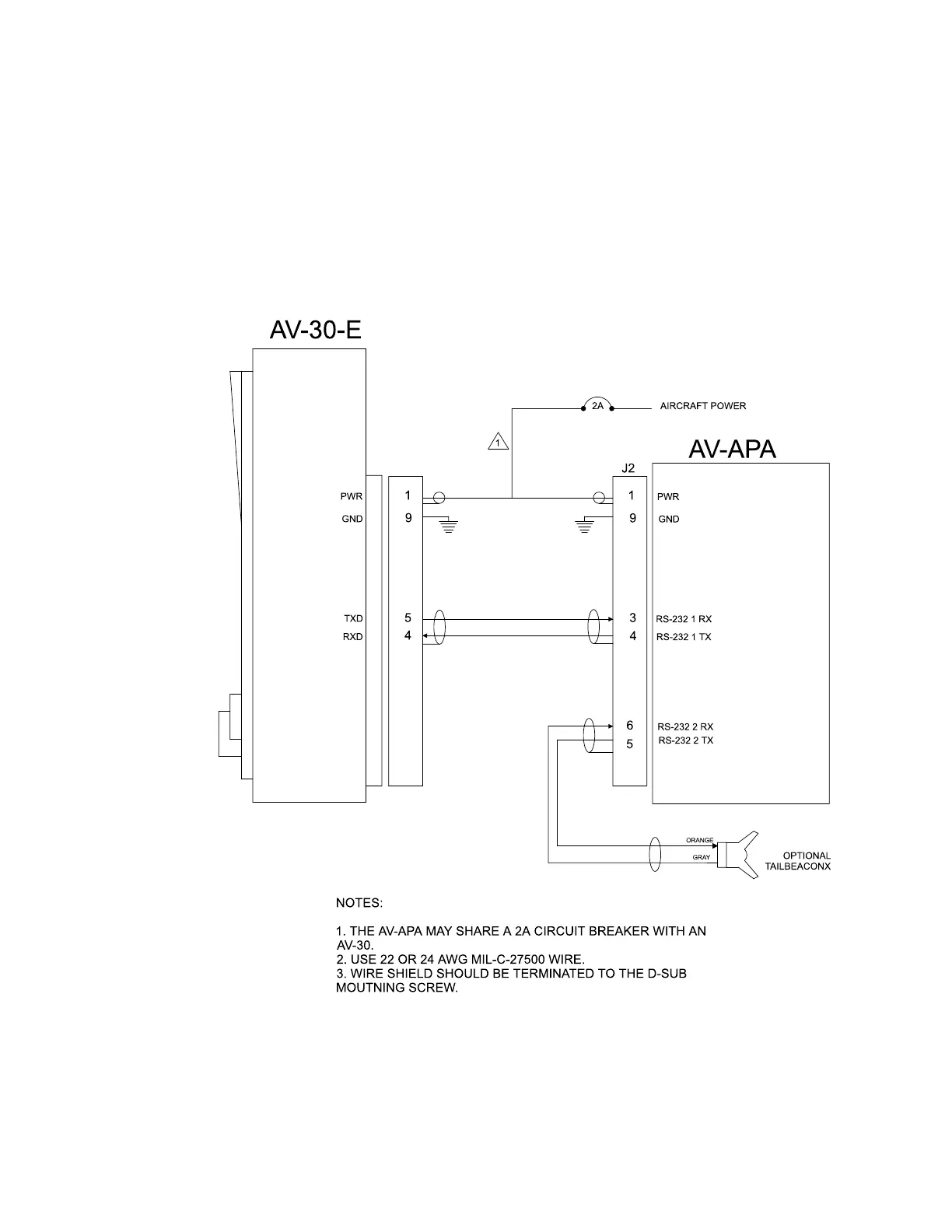

Figure 26 - AV-APA – AV-30-E Interconnect Drawing
