The supplied ring terminal connectors are sized for these screws.

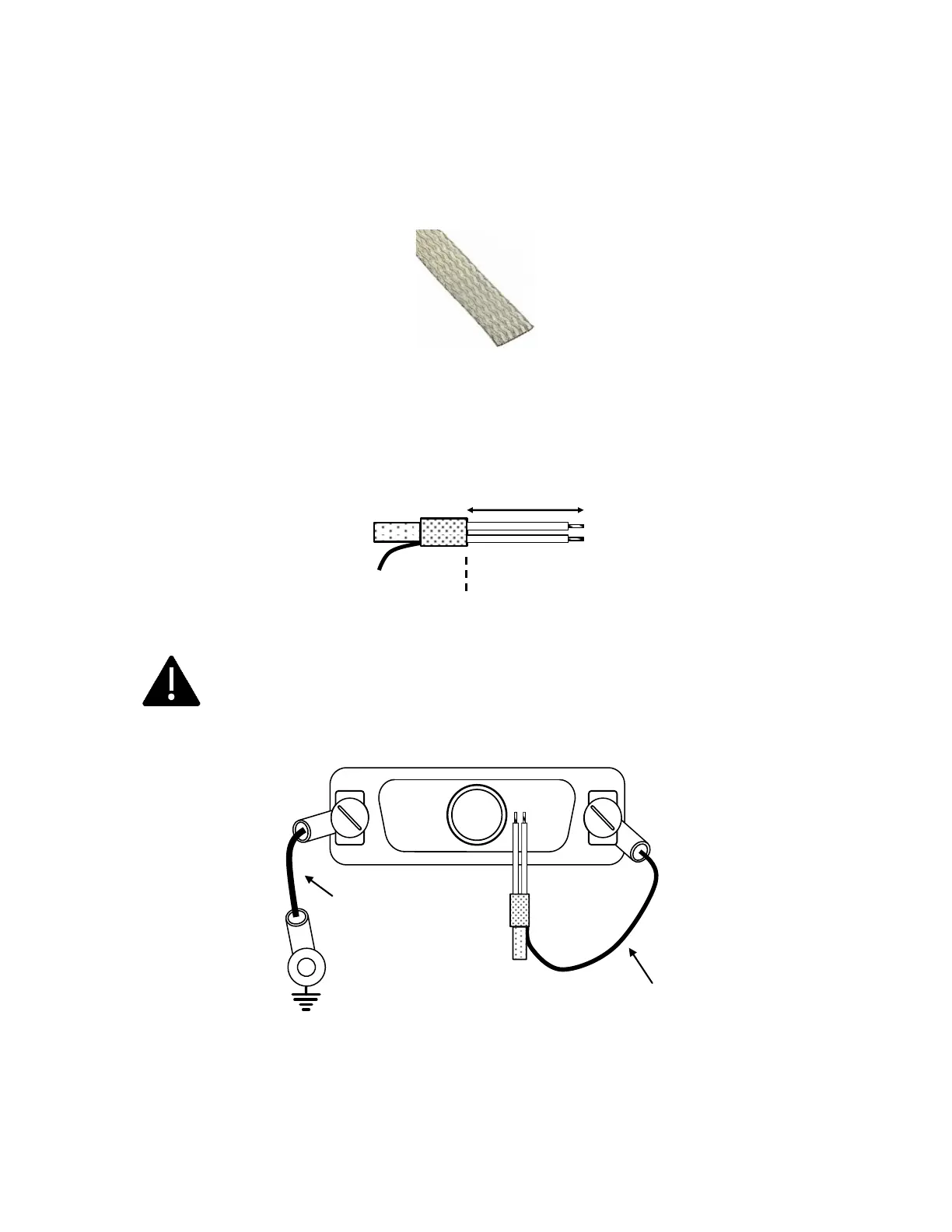

The ground braid strap is to be less than 8 inches in overall length and
at least 3/16 width. Alpha Wire part number 1230 SV001 or equivalent.
Figure 13 - Ground Braid Strap – 8” or Less in Length
The exposed (non-shielded) portions of the interface cables AND the
shield grounds are to remain less than 2.5 inches.
2.5 Inches Maximum
Non ShieldedShielded
Figure 14 - Shielded Cable
The bond between the unit (measured at the D-sub screws) to
the aircraft frame must be 2.5 milli-Ohms or less.
GROUND
STRAP
< 8”
AIRCRAFT
GROUND
CABLE SHIELD DRAIN
< 2.5”
D-SUB BACK-SHELL
Figure 15 - Cable Shields and Ground Strap
