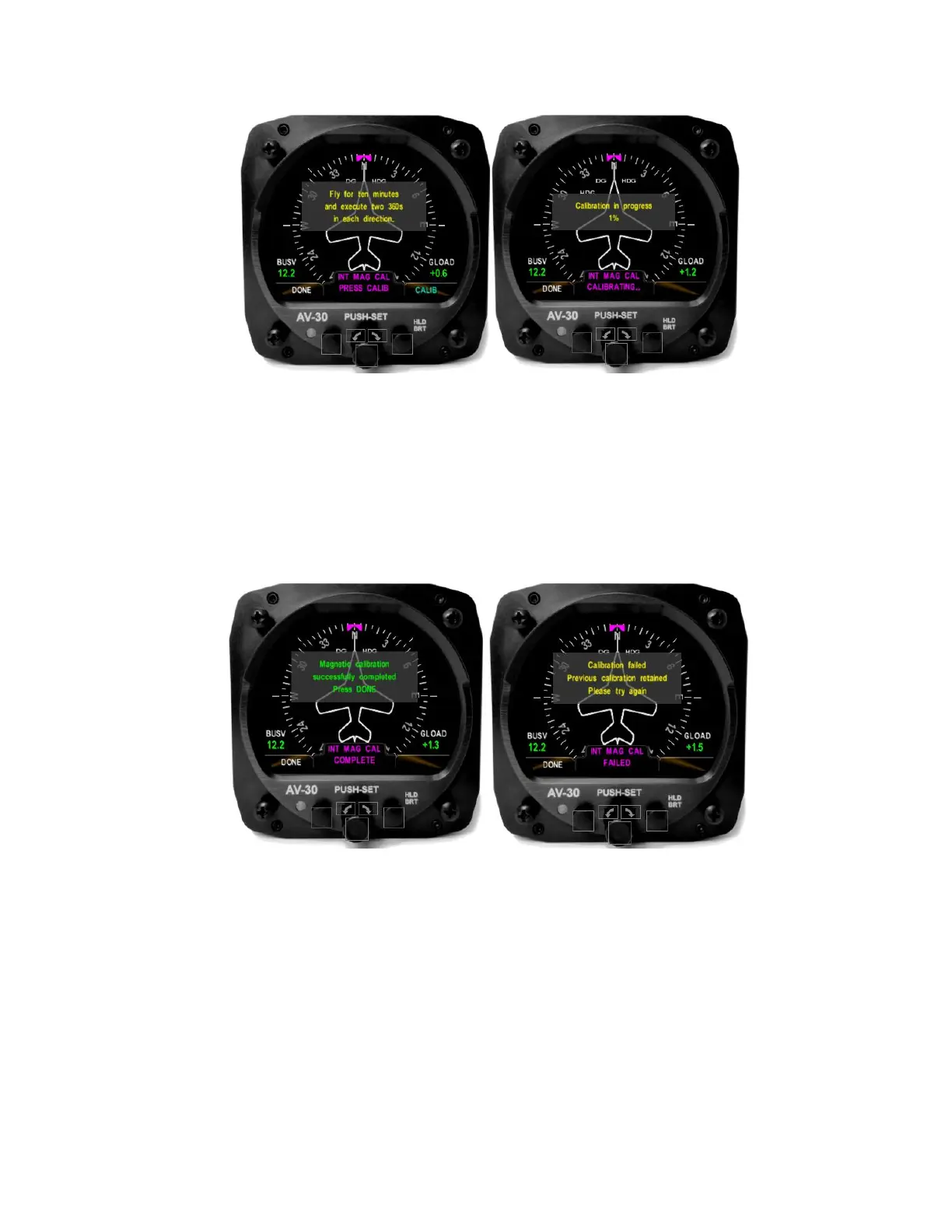

Figure 45 - INT MAG CAL Entry and Progress
3. Fly for 10 minutes. Four 360-degree, standard-rate turns will need to
be completed. Each turn will represent 25% of the total.
4.
the red flag will extinguish. If the calibration failed, please complete
again.
Figure 46 - INT MAG CAL Success and Failure Screens
The AV-30 will retain all calibration even if a hard reset is executed.
Internal magnetometer and external magnetometer calibration data are
stored independently.
