Figure 50 – AVMAG CAL Orientation Guide
6. Upon completion, the raw data will be processed. If a good calibration
is possible, the red MAG CAL flag will extinguish and the screen shall
display a success message. If the calibration failed, please review the
procedure and execute them again.

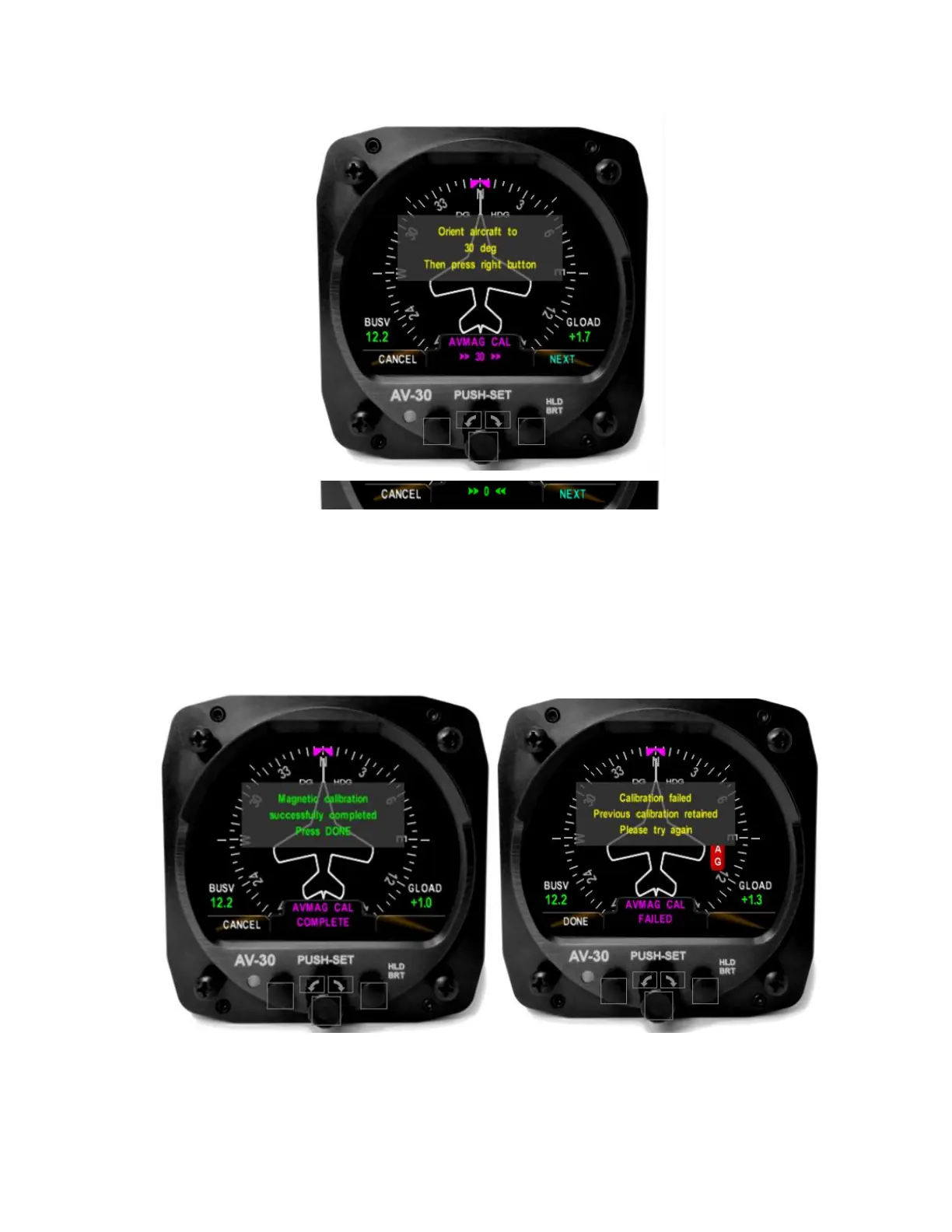

Figure 51 – AVMAG CAL Success and Failure Screens
