• 15-pin harness housing and associated pins
• Braided ground cable
• Ring terminals
Note: the installation kit has been updated to use machined pins instead
of the original stamped pins.

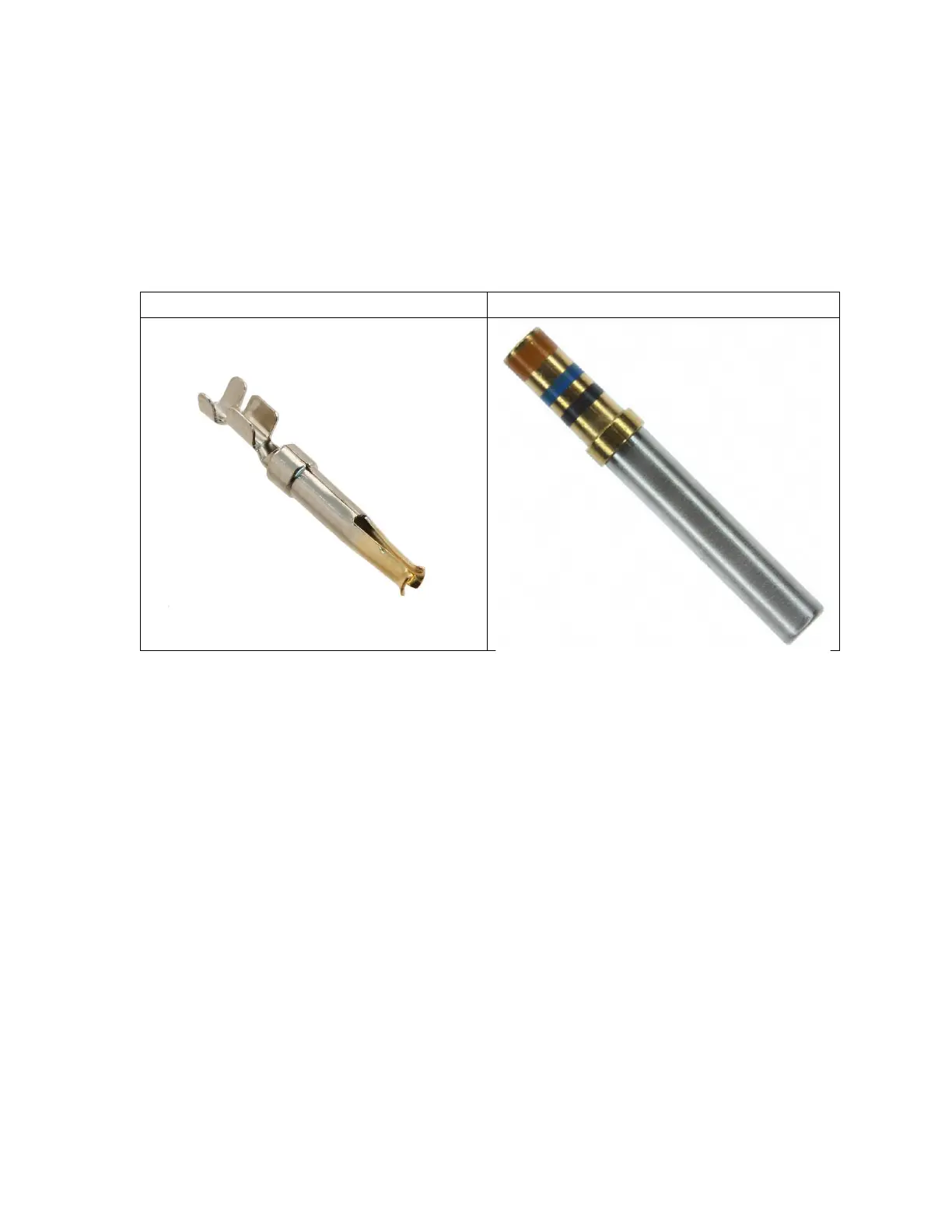

Original Stamped Pins
Updated Machined Pins
If your kit includes machined pins, a Daniels AFM8 crimp tool using a
K13-1 positioner or equivalent M22520/2-01 tool should be used. If your
installation kit includes the original stamped pins, a NorComp
180-701-170-000 hand crimper or equivalent should be used.
