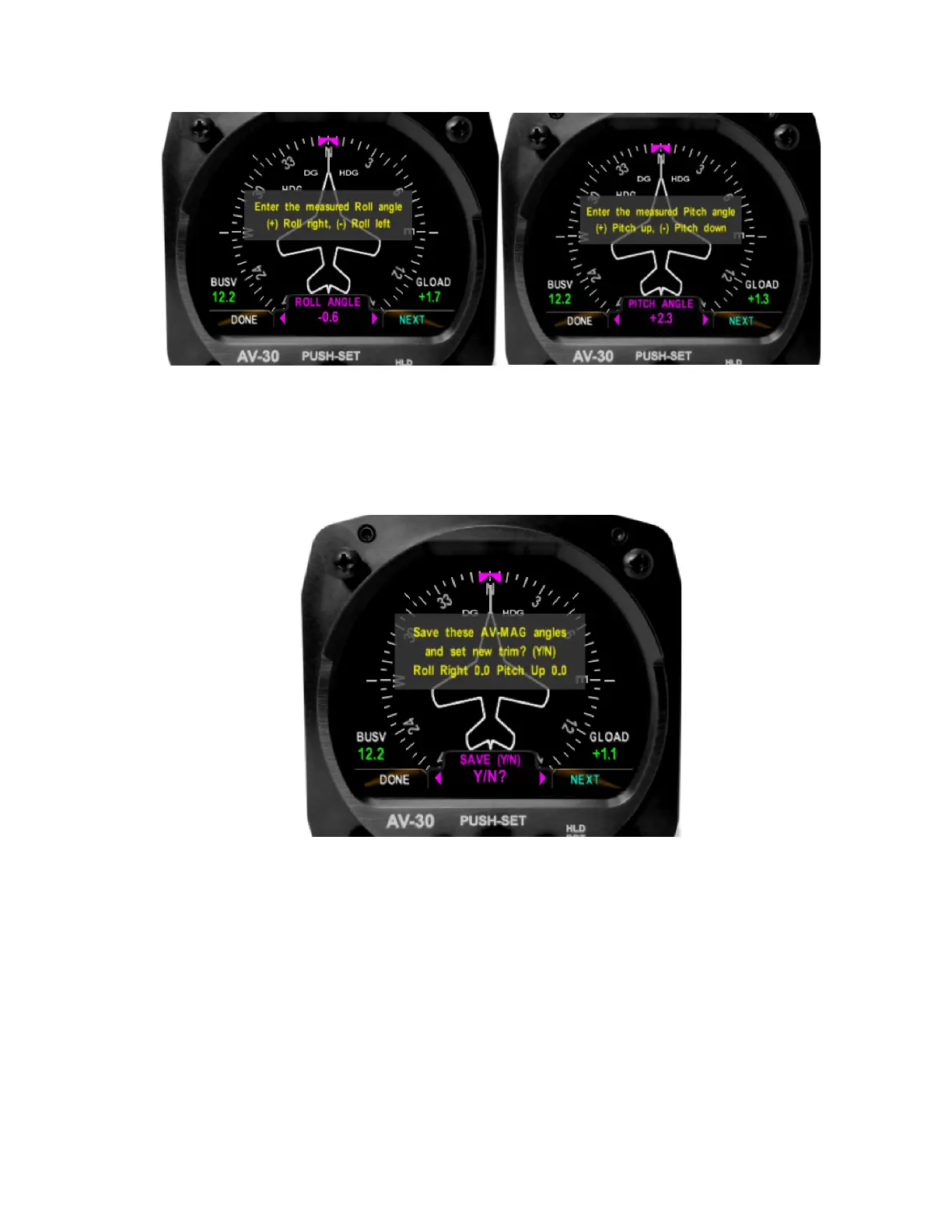

Once these values are committed, the AV-30 will calculate the
differences in mounting angles for use in the heading solution. Once
entered, changing these values without remeasurement of the AV-Mag
angles will invalidate the installation calculation.
After roll and pitch angles have been entered, calibration may begin.
Record the installation selections and parameters in Table 13-3 of
Section 13.2.4.
