UTG9000T Series Function Abitrary Waveform Generator
138

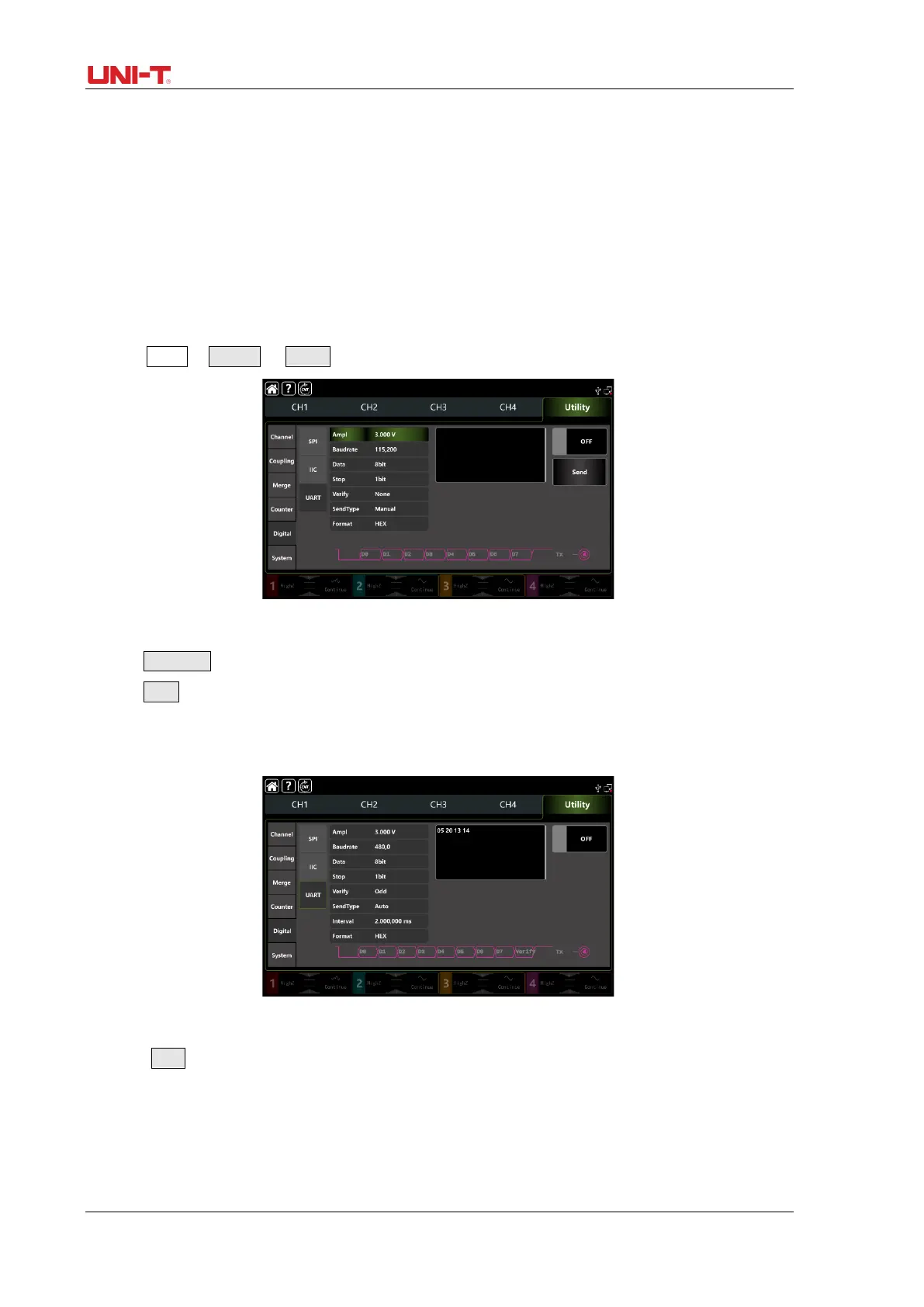

Comprehensive example
In UART mode, set the output baud rate to 4800, data bit to 8bit, set hexadecimal 5, 20, 13, 14 as
the data format, select odd verify mode, stop bit as 1bit, interval time 2ms, the settings step as
following,
1) Turn on IIC mode
Tap Utility → Digital → UART accordingly.
2) Set data parameter
Tap Baudrate to pop-out visual numeric keyboard to enter 4800.
Tap Data to pop-out visual numeric keyboard to select 8bit.
Tap input box to pop-out visual numeric keyboard to enter 2ms.
Data format and stop bit use the default option.
3) Turn on output function
Tap OFF to turn on the output function, CH4 is UART-TX. See the figure as below.
