UTG9000T Series Function Abitrary Waveform Generator
17

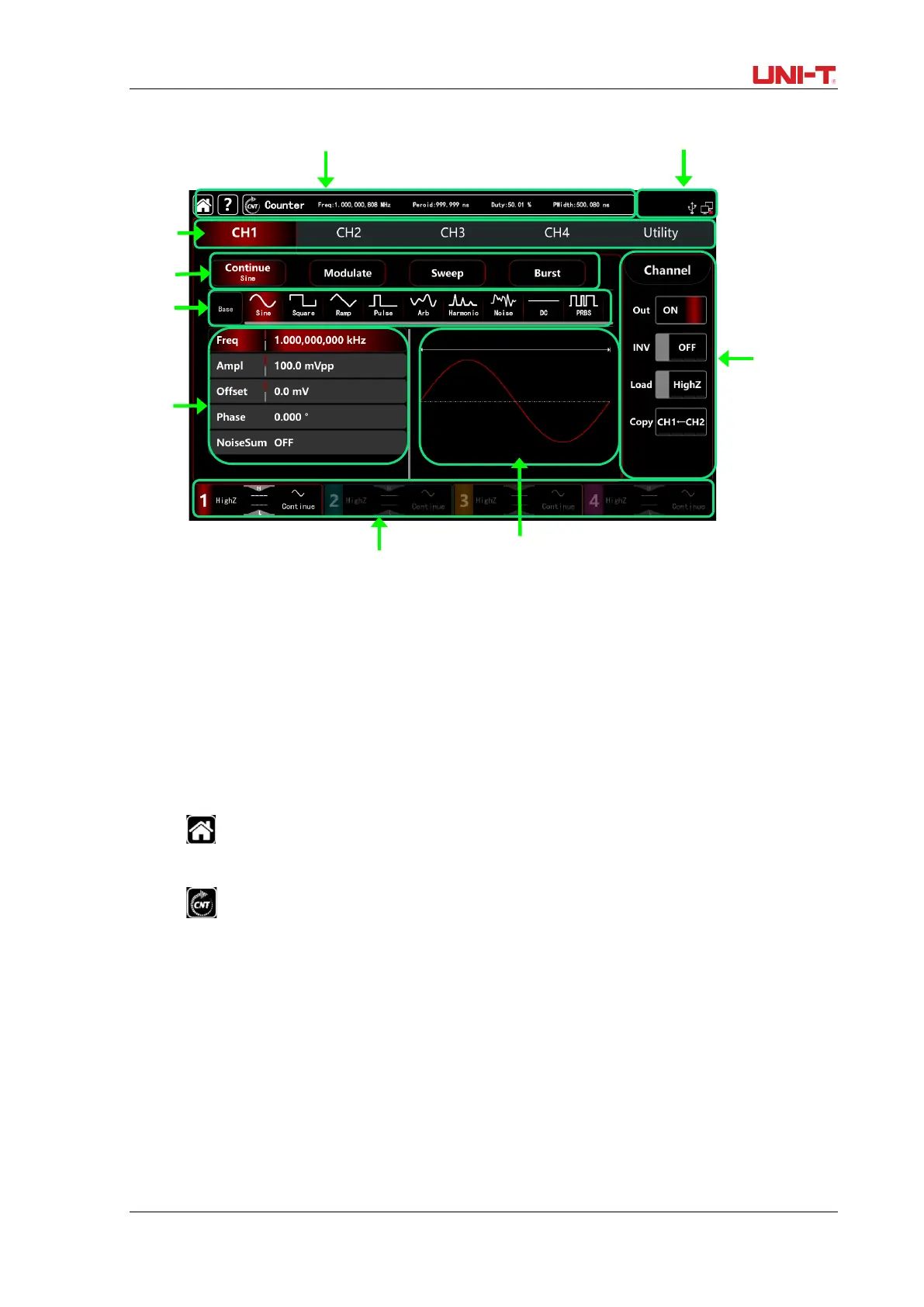

Figure 2-3 Touch Screen Display Interface
UTG9000T is designed with capacitive touch screen, display window multi-panel layout. Menu
category position is fixed, reduce the level of interface jumps.
Description:
① . Home key，Help key, Frequenct counter: this area does not change with other interface
jumps.
1) ：Home symbol，tap this symbol to return to the home page in any other interface.
2) ？:Help symbol，tap this symbol to open the help menu.
3) ：Frequency symbol，tap this symbol to open frequency counter, it presents the test
result .
②．Menu tab: tap CH1、CH2、CH3、CH4 and Utility to make parameter and secondary function
settings.
Highlight display: Select tab will be highlight with CH color or cyan of the secondary function,
words with white color.
③ .Output Mode: continue, modulate, sweep, burst
④ .Carrier wave Settings：Nine carrier wave - sine wave, square wave, ramp wave, pulse wave,
harmonic wave, noise, PRBS (pseudo random binary sequence), DC, arbitrary wave.
⑤ .Parameter List: Display the parameter of the current wave in list format, tap parameter list
①
②
③
