UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
18
area to enable editing, virtual numeric keyboard pop-out ,see Figure 2-4

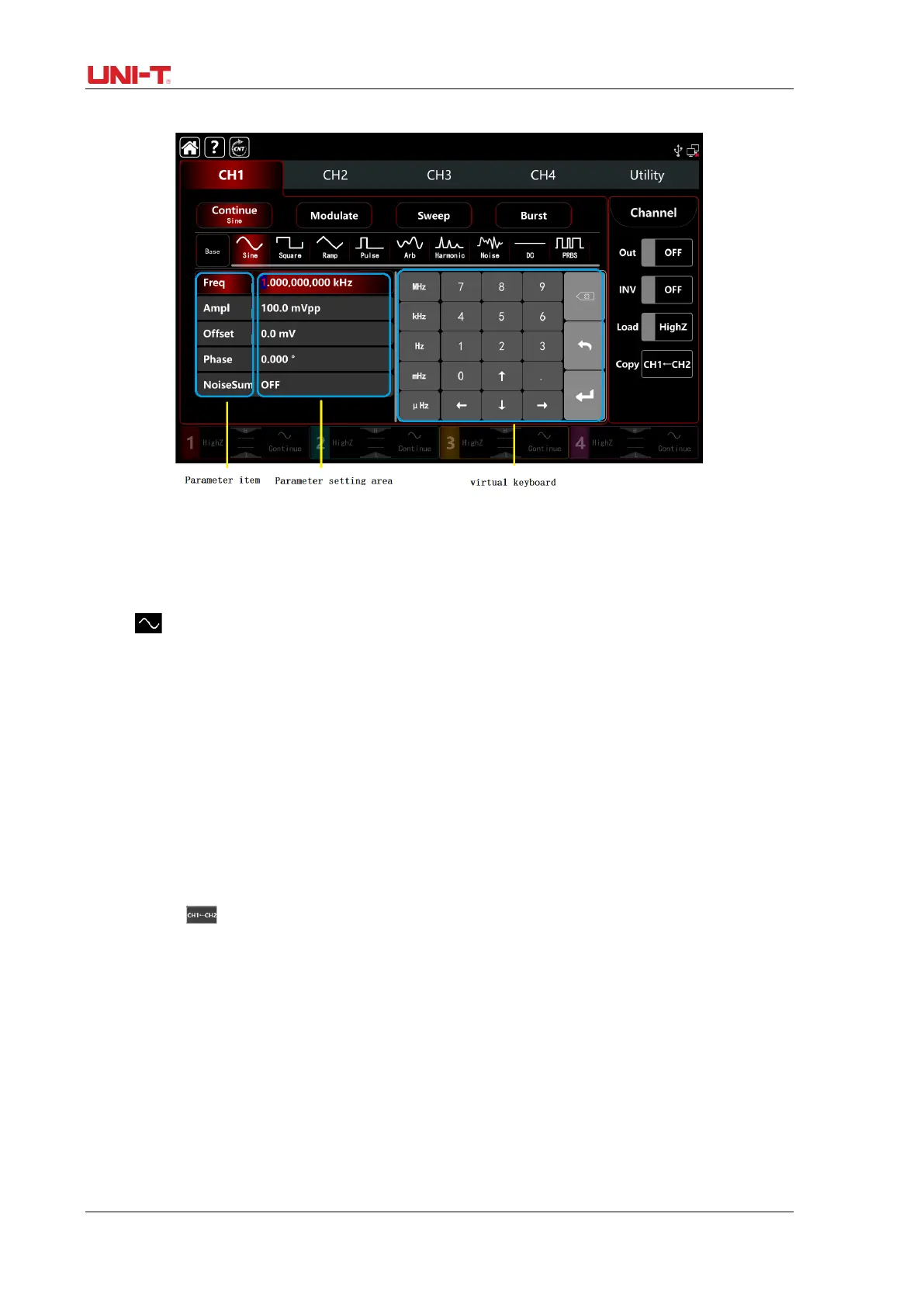

Figure 2-4 Parameter Editing
⑥.CH tab: the current channel which choosed will be highlight.
1) “HighZ”presents load with high resistance,it can set to be 50Ω.
2) pesents the output wave is sine wave.
3)“Continue”presents the output wave is continue wave, which is output carrier wave
only.( Other different mode may presents “carrier wave”,“AM”,“linear”or “N period”)
⑦.Wave Display Area: display the current waveform (it can distinguish by color or highlight of the
CH tab, parameter list display the current waveform parameters on the left side.)
Note: There is no waveform display area in Utility page.
⑧.CH Status Settings: quick switch the general settings of the current channel. Tap channel
tab to switch output on/off to enable the channel output;inverse on/off to enable output the
inverse waveform;load on/off to enable HighZ or 50Ω to match the resistance of the output
terminal; can copy the CH2 settings to CH1
⑨
.System Settings: display USB connecting status, LAN symbol, external clock, etc.
