UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
36

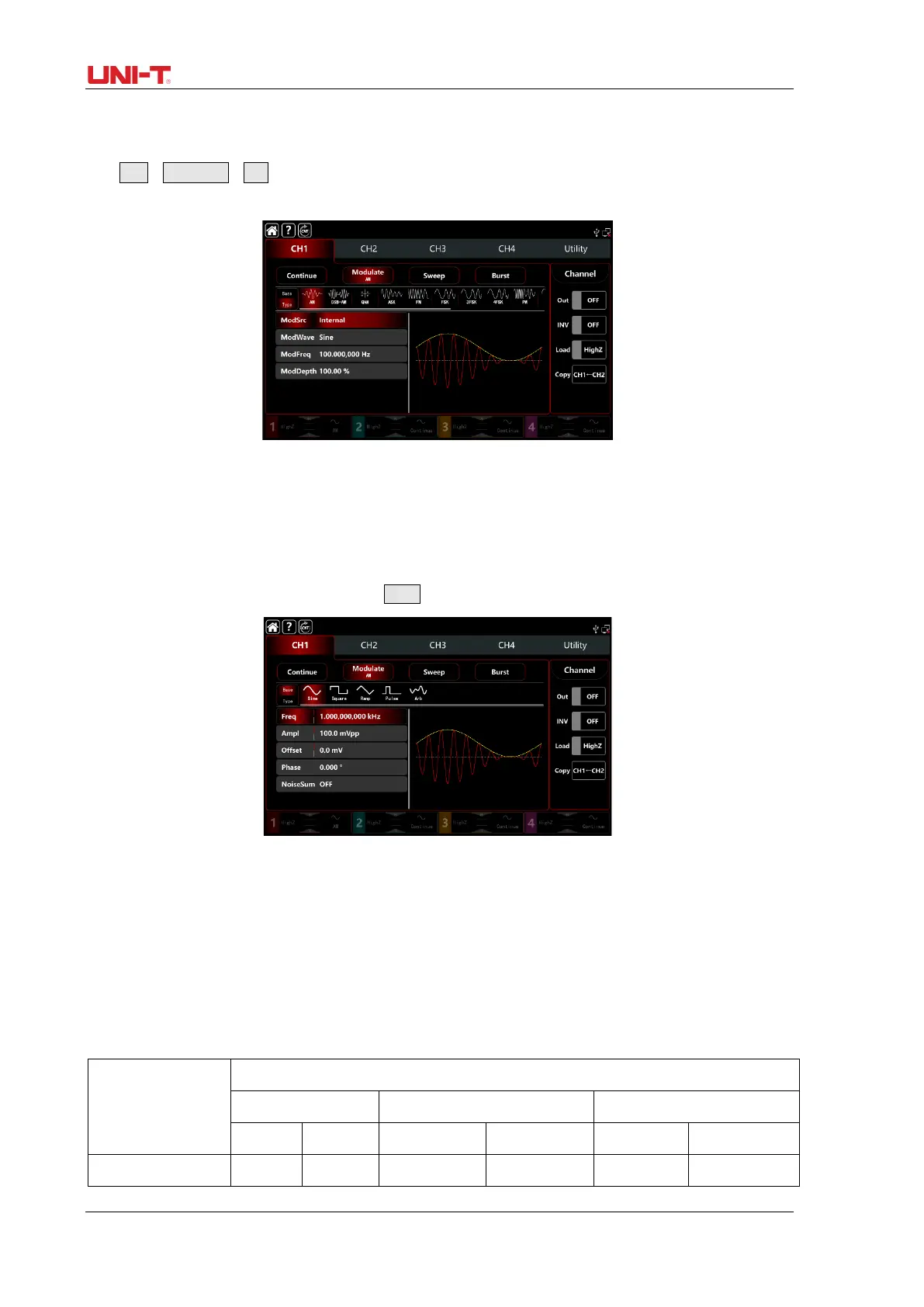

Select AM Modulation
Tap CH1→Modulate→AM to turn on the AM modualtion, the instrument output the moduluated
waveform according to the current setting of the modulation wave and the carrier wave.
Select the carrier waveform
The carrier wave of AM: sine, square, ramp, pulse and arbitrary wave (except DC), the default option is
sine wave. After select AM modulation, tap Base to present the carrier waveform on the right side.
Carrier frequency settings
The frequency range of the carrier wave can set differently, all the default fundamental frequency
is 1kHz, see Table 4-1 and Table 4-2 for the frequency settings of the different carrier waveform.
Table 4-1 The carrier wave frequency of CH1 and CH2
Carrier waveform
Frequency
UTG9604T UTG9404T UTG9204T
MIN
MAX
MIN
MAX
MIN
MAX
Sine wave 1uHz 600MHz 1uHz 400MHz 1uHz 200MHz
