UTG9000T Series Function Abitrary Waveform Generator
77

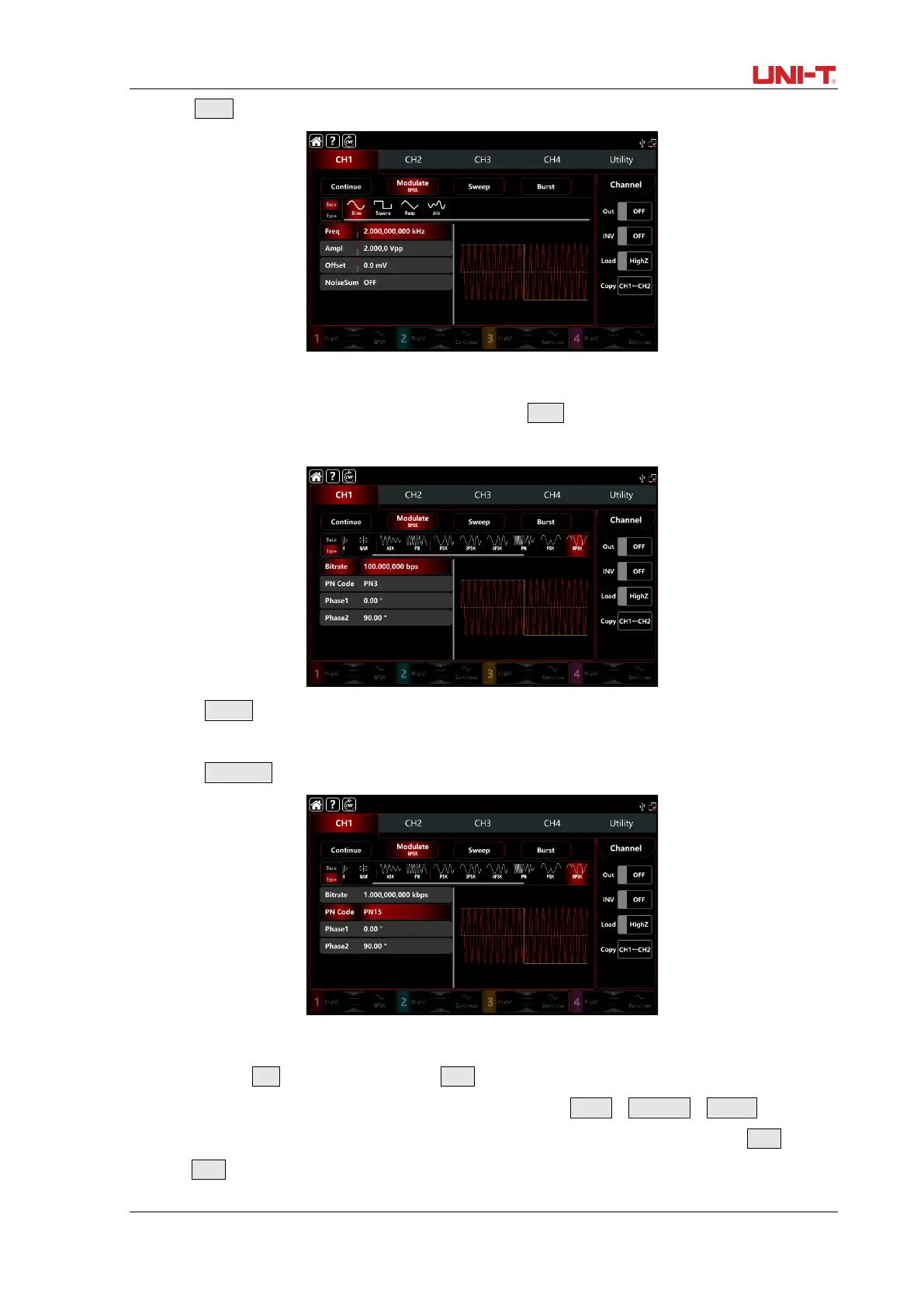

Tap Ampl to pop-out visual keyboard to enter 2Vpp.
3) Set the BPSK bitrate and phase
After the parameter setting of the carrier wave, tap Type to return to modulation interface to
set the BPSK rate and phase.
Tape Bitrate to pop-out visual numeric keyboard to enter 1kbps.
Phase use the default value,phase1: 0°,phase2 ：90°.
Tape PN Code PN3 to select PN15.
4) Turn on the output channel
Tap channel Out botton to ON or push CH1 key on the front panel to quick set the output
channel,and it can aslo turn on at the Utility interface,tap Utility→Channel→Output or
double-click the channel tab at the bottom of the screen to step through ON/OFF. CH1 key
and CH1 tab backlight light on indicating that the channel 1 output is turned on.
