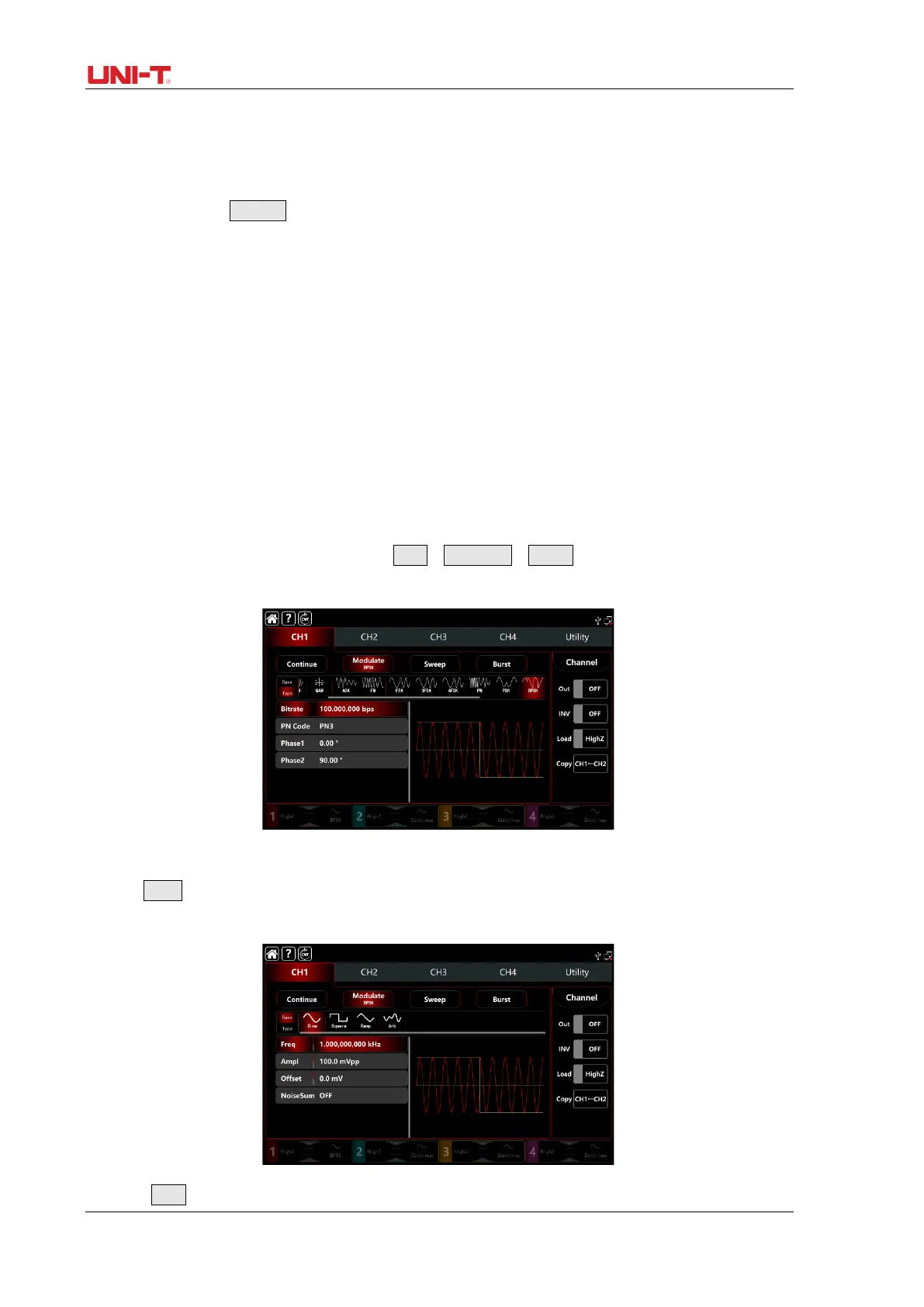

Phase settings
1) Phase1 is the carrier wave phase, the default value is 0°. Rotate multifunction knob, push
direction key or tap Phase1 tab to pop-out visual numeric keyboard to enter values and select unit
in modulation setting interface.
2) Phase1 is the modulating phase, it means the phase changes between the BPSK-modulated wave and
the carrier wave phase. The BPSK modulating phase range can set to 0º~360º, the settings steps is the
same as Phase1.
Comperhensive example
In BPSK modulation mode, set an internal 2kHz,2Vpp sine wave as a carrier wave, set the initial
phase to 90°, 1kbps shift frequence between in the carrier wave phase and the modulating wave
phase, set PN Code to PN15. The settings steps as following,
1) Turn on BPSK modulation mode: tap CH1→Modulate→BPSK accordingly.
2) Set the parameter of the carrier wave signal
Tap Base to select sine as the carrier wave (the default option is sine), so this step has no
change.
Tap Freq to pop-out visual keyboard to enter 2kHz.
