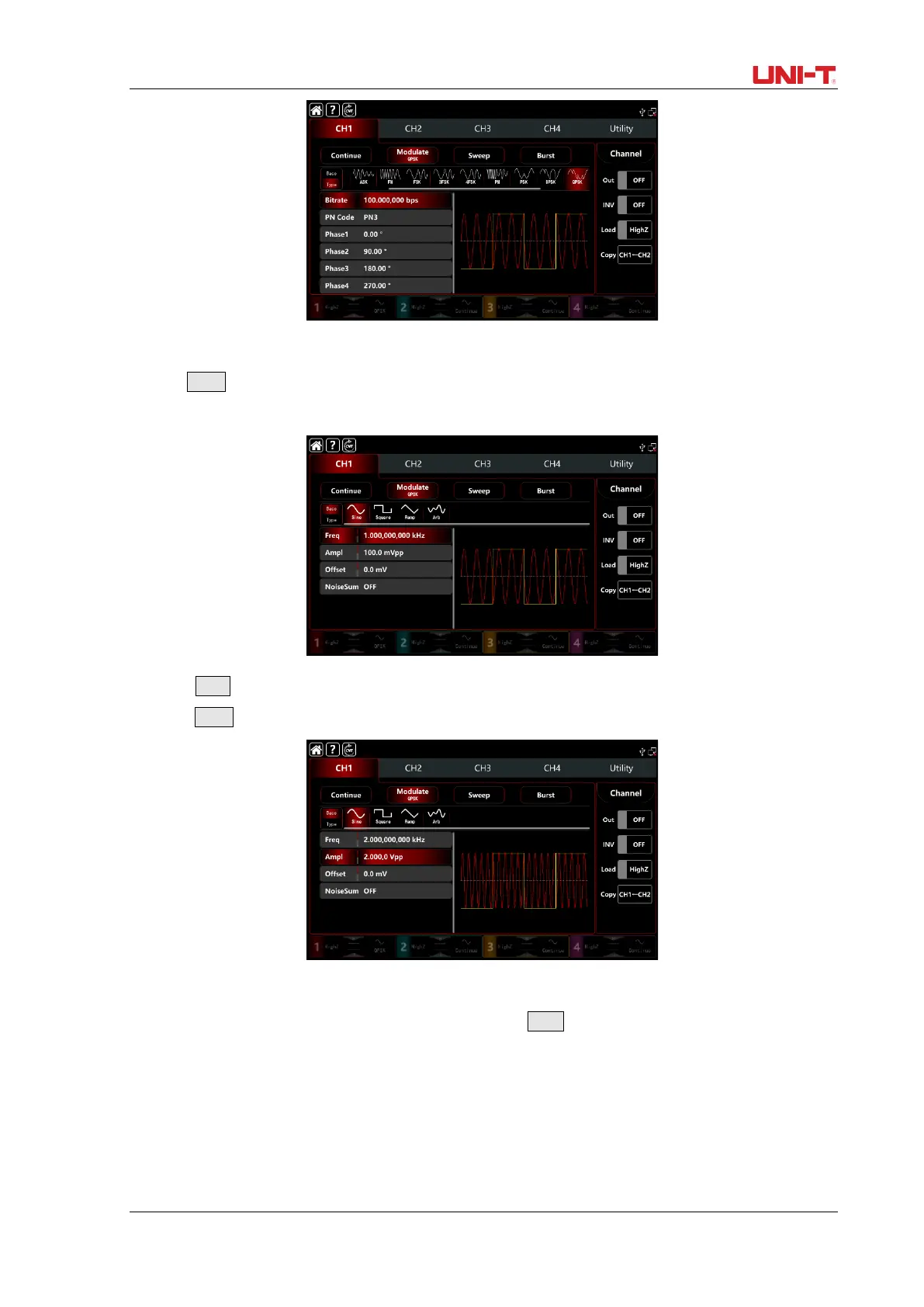

2) Set the parameter of the carrier wave signal
Tap Base to select sine as the carrier wave (the default option is sine), so this step has no
change.
Tap Freq to pop-out visual keyboard to enter 2kHz.
Tap Ampl to pop-out visual keyboard to enter 2Vpp.
3）Set QPSK bitrate and the modulating phase
After the parameter setting of the carrier wave, tap Type to return to modulation interface to
set the QPSK bitrate and phase.
