UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
80

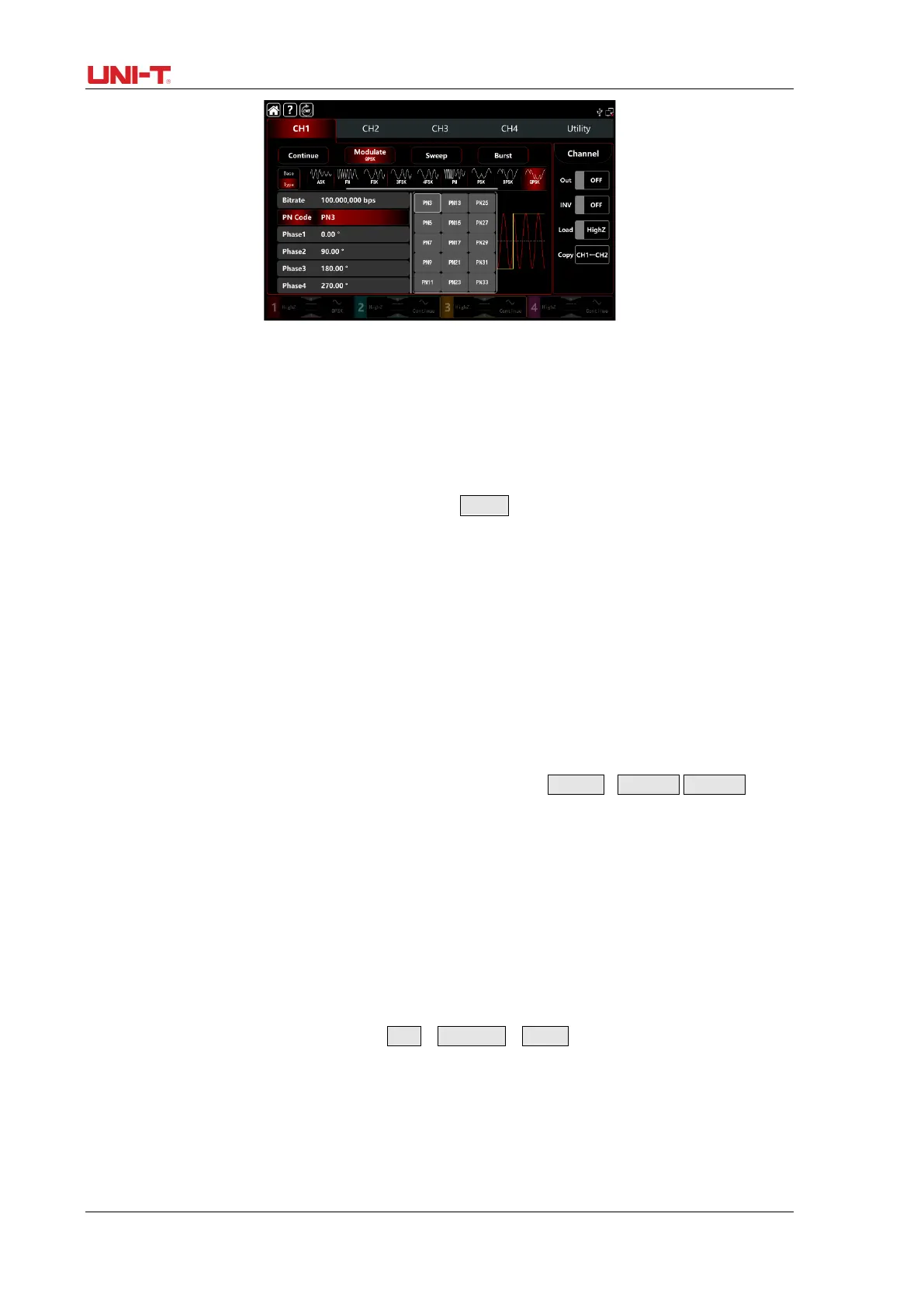

QPSK bitrate settings
In QPSK modulation mode, it can set the shift frequency between in the carrier phase and the
modulating phase. The QPSK bitrate range cam set to 1μbps~2Mbps, the default range is 100bps.
Rotate multifunction knob, push direction key or tap Bitrate tab to pop-out visual numeric keyboard
to enter values and select unit in modulation setting interface.
Phase settings
1) Phase1 is the carrier wave phase, the default value is 0°.
2) Phase2, 3, 4 is the modulating phase, it means the phase changes between the
QPSK-modulated wave and the carrier wave phase. The QPSK modulating phase range can set
to 0º~360º. Rotate multifunction knob, push direction key or tap Phase1 , Phase2 ,Phase3 tab to
pop-out visual numeric keyboard to enter values and select unit in modulation setting interface.
Comperhensive example
In QPSK modulation mode, set an internal 2kHz, 2Vpp sine wave as a carrier wave, set the phase of the
three fundamental waves and the initial modulation phases be 90 °, 180 ° and 270 ° respectively, hopping
frequency 1kbps among the phases, select PN code as PN 15, the setting steps as following,
1) Turn on QPSK modulation mode: tap CH1→Modulate→QPSK accordingly.
