the modulated wave multiply by modulation factor. The modulation modes for each channel are
independent, it can set the same or different modulation modes to each channel.
Select SUM modulation

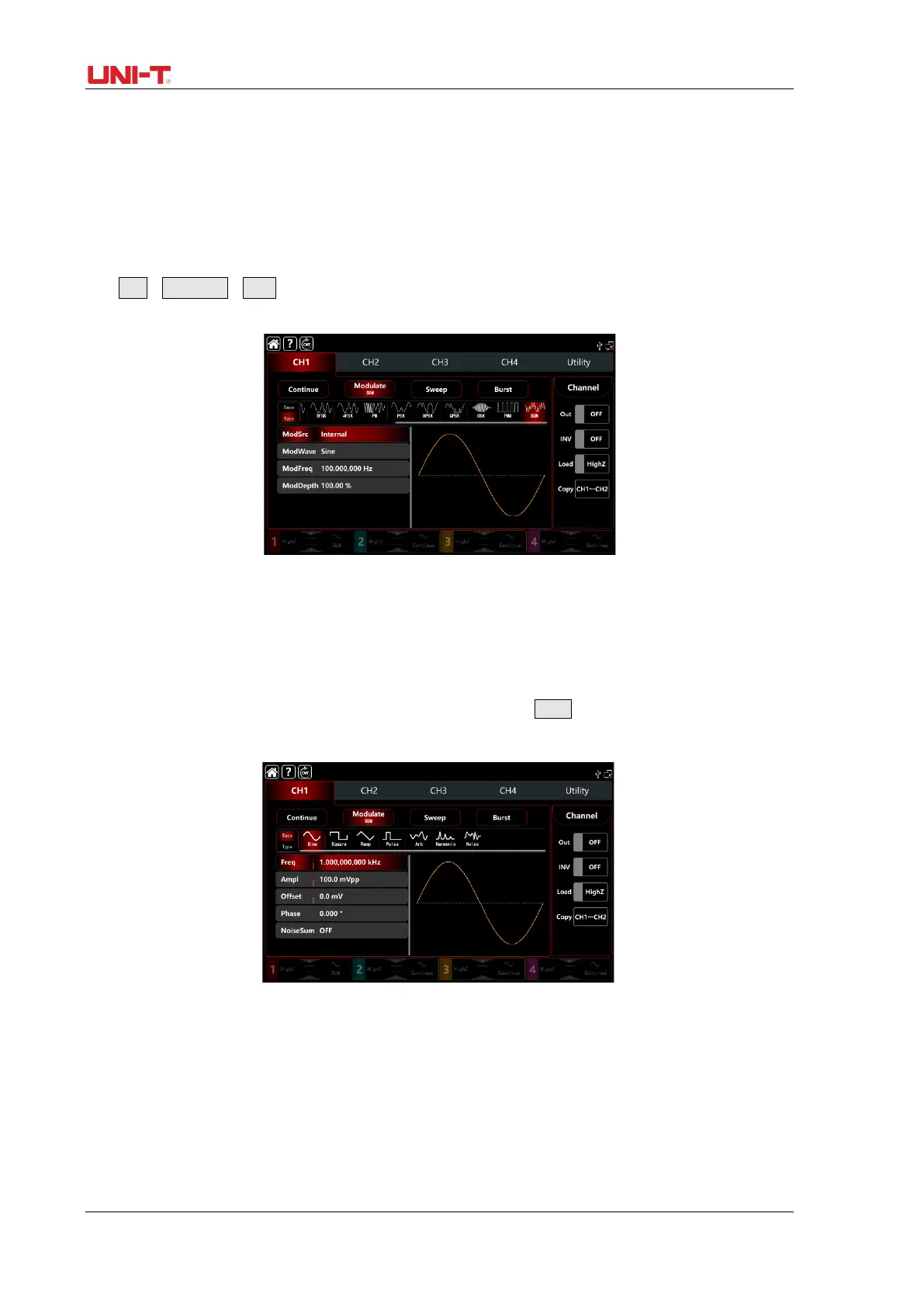

Tap CH1→Modulate→SUM to turn on the AM modualtion, the instrument output the moduluated
waveform according to the current setting of the modulation wave and the carrier wave.
Select the carrier waveform
The carrier wave of SUM: sine, square, ramp, pulse, harmonic, noise and arbitrary wave (except DC),
the default option is sine wave. After select SUM modulation, tap Base to present the carrier waveform
on the right side.
Carrier wave frequency settings
Refer to The carrier wave frequency settings of AM modulation.
