UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
89
Select the source of modulation
UTG9000T function/arbitrary waveform generator can select internal or external modulation source.
When turn on SUM modulation, the default modulation source is internal. Rotate multifunction knob or
tap ModSrc tab to step through internal or external modulation source in SUM modulation setting
interface.
Select the source of modulation
1）Internal source
UTG9000T function/arbitrary waveform generator can select internal or external modulation source.
When turn on SUM modulation, the default modulation source is internal. Rotate multifunction knob or
tap ModSrc tab to step through internal or external modulation source in AM modulation setting
interface.
 Square wave: duty ratio 50%
 Rising ramp wave: symmetry 100%
 Falling ramp wave: symmetry 0%
 Arbitrary wave: the length of arbitrary wave limit at 2kpts by the method of select point
automatically
 Noise wave: white gaussian noise

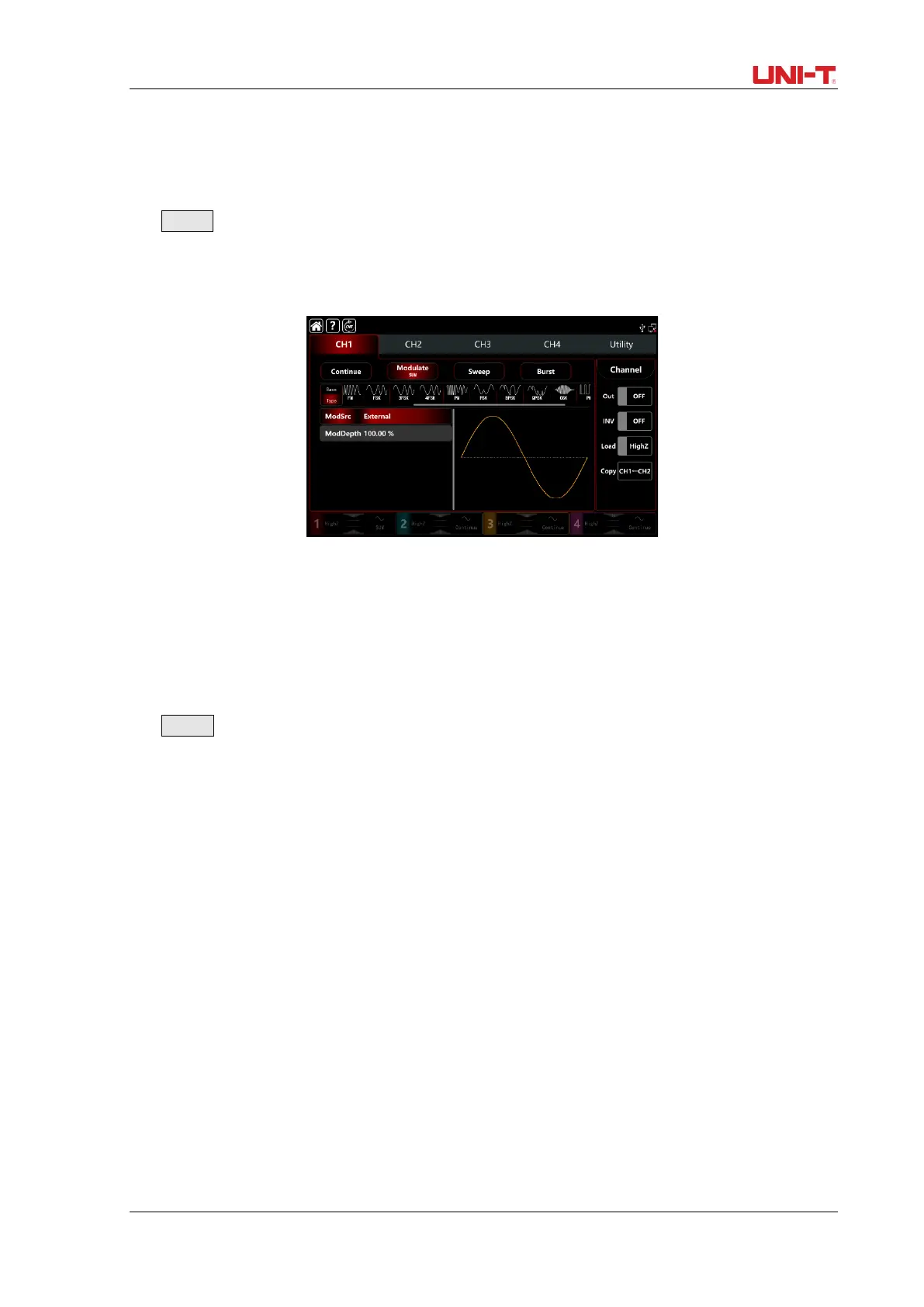

2）External source
When the modulation source is external, the modulation wave and frequence will be hidden in
parameter list. Use the external waveform to modulating the carrier wave. The SUM modulation
depth is controlled by the ±5V signal level on the external analog modulation input terminal
(Modulation In connector) on the back panel. For example, if set the modulation depth to 100%,
the output of SUM amplitude is maximum when the external modulation signal is +5V; the output
of SUM amplitude is minimum when the external modulation signal is -5V.
