UNI-T UTG9000T Series User Manual

UTG9000T Series Function Abitrary Waveform Generator
95
modulation wave. The intput external modulating signal frequency range is between 0Hz~50kHz.
Comprehensive example

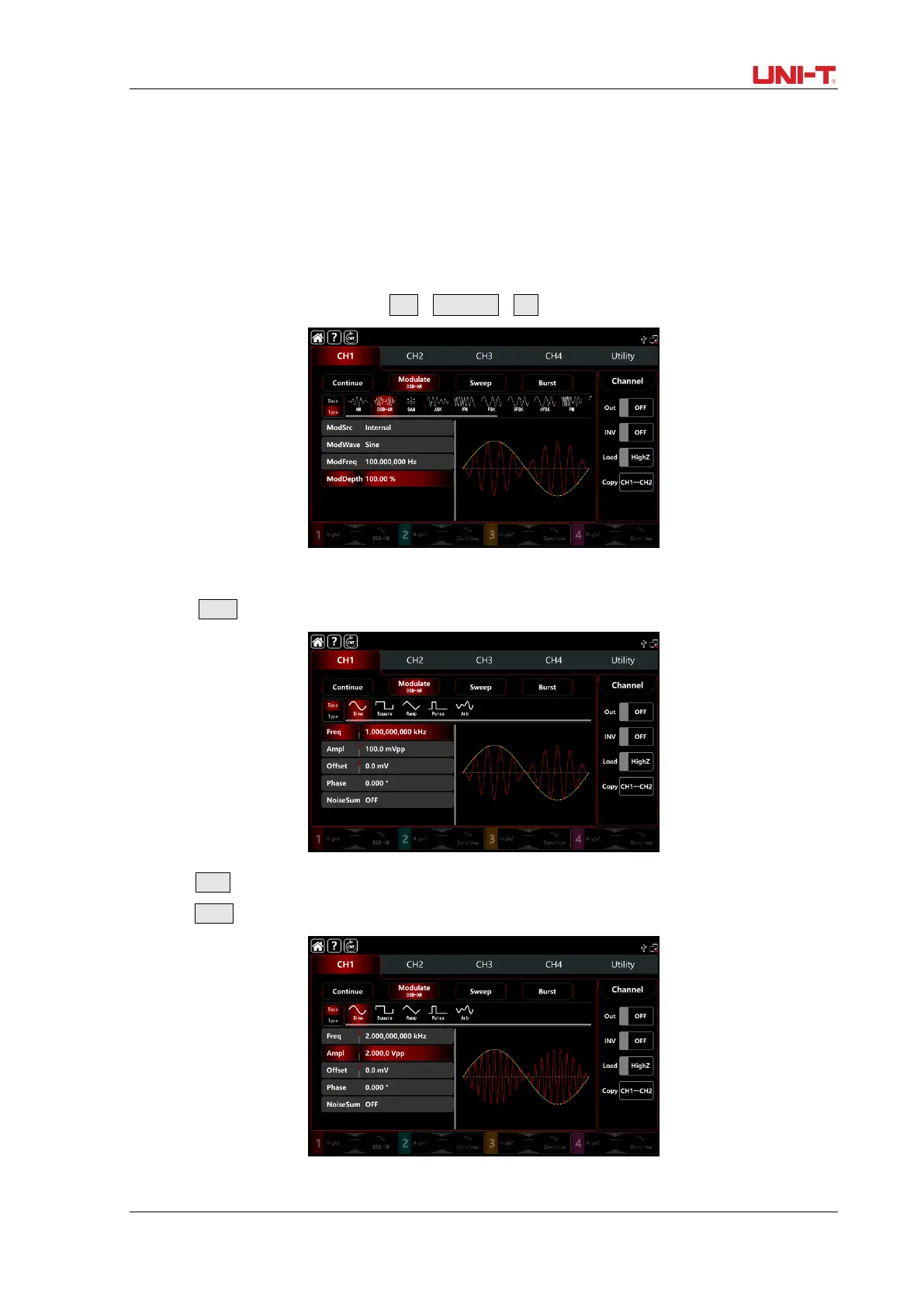

In DSB-AM modulation mode, set an internal 1kHz sqaure wave as a modulating signal, another sine wave
signal with frequency 2kHz, amplitude2Vpp as the carrier wave signal, the settings steps as following,
1）Turn on AM modulation mode: tap CH1→Modulate→AM accordingly.
1) Set the parameter of the carrier wave signal
Tap Base to select Square as the carrier waveform (the default option is sine wave).
Tap Freq tab to pop-out visual numeric keyboard to enter 2kHz.
Tap Ampl tab to pop-out visual numeric keyboard to enter 2Vpp.
3）Set the modulation wave and frequency
