UTG9000T Series Function Abitrary Waveform Generator
96

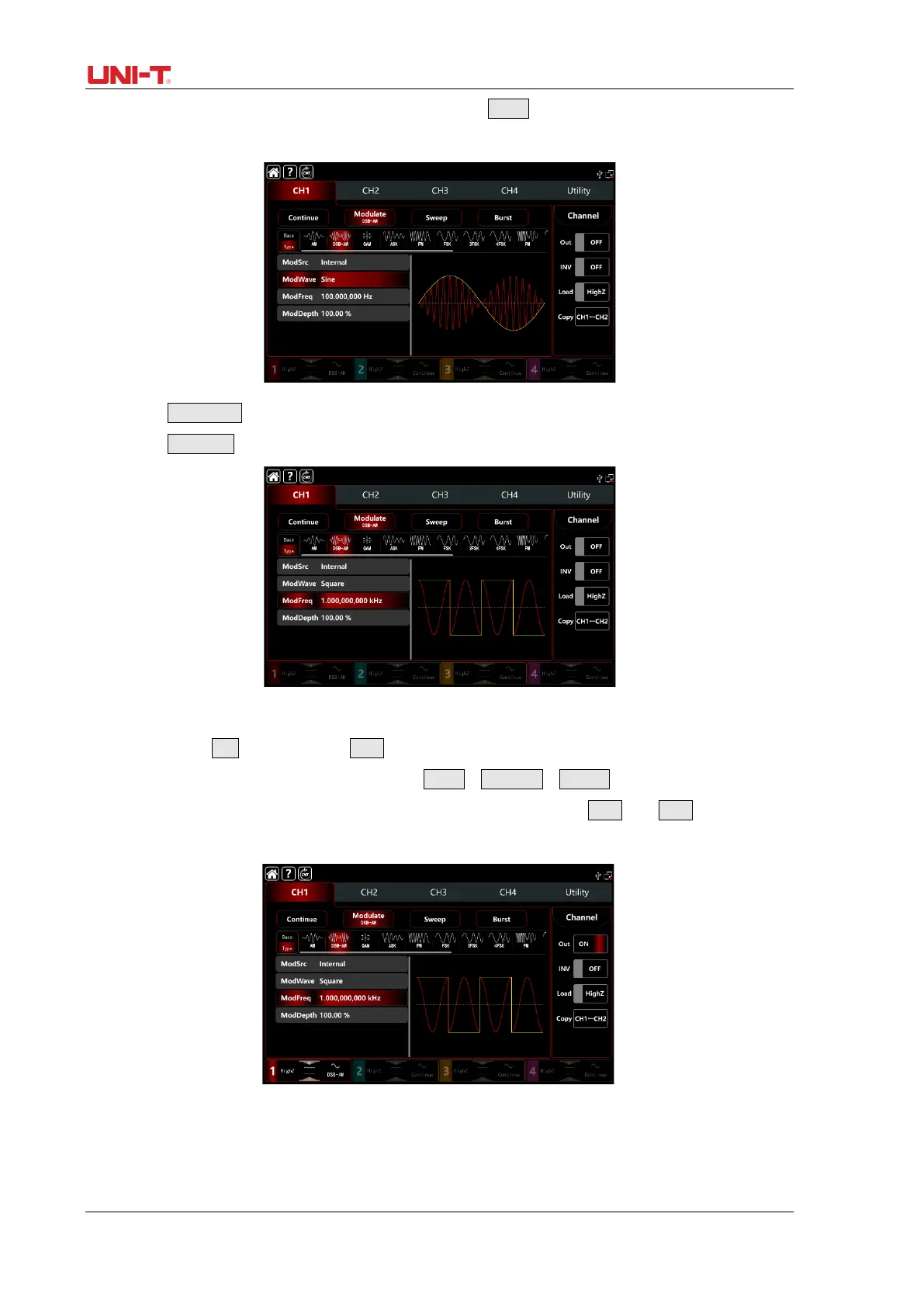

After the parameter setting of the carrier wave, tap Type to return to DSB-AM modulation
interface to set the modulation wave nd frequency.
Tap ModWave tab to pop-out visual numeric keyboard to select square wave.
Tap ModFreq tab to pop-out visual numeric keyboard to enter 1kHz.
4）Turn on the output channel
Tap channel Out to ON or push CH1 on the front panel to quick set the output channel,and it
can aslo turn on at the Utility interface,tap Utility→Channel→Output or double-click the
channel tab at the bottom of the screen to step through ON/OFF. CH1 and CH1 tab backlight
light on indicating that the channel 1 output is turned on.
The shape of the AM modulation waveform viewed through an oscilloscope is shown in the
figure below,
