APX 525/625 Generator Revision C Installation

2005 Del Medical Imaging Corporation

7/5/2005 Page 101

GENERATOR INTERCONNECTIONS

Power Module

Exposure Interlocks

Each interlock switch must be an isolated set of contacts which closes in the exposure

“Go” condition.

TB1 - 1 to Door Interlock

TB1 - 2 to Collimator Interlock

TB1 - 3 to Common

If no door or collimator interlocks are present, wire jumpers must be added to TB1 to

allow an exposure.

Filament Connections to High Tension Transformer (Cable #126-0178G1)

(Large Filament) (Green Wire) to TB2-1

(Small Filament) (White Wire) to TB6-1

(Filament Common) (Black Wire) to TB2-3

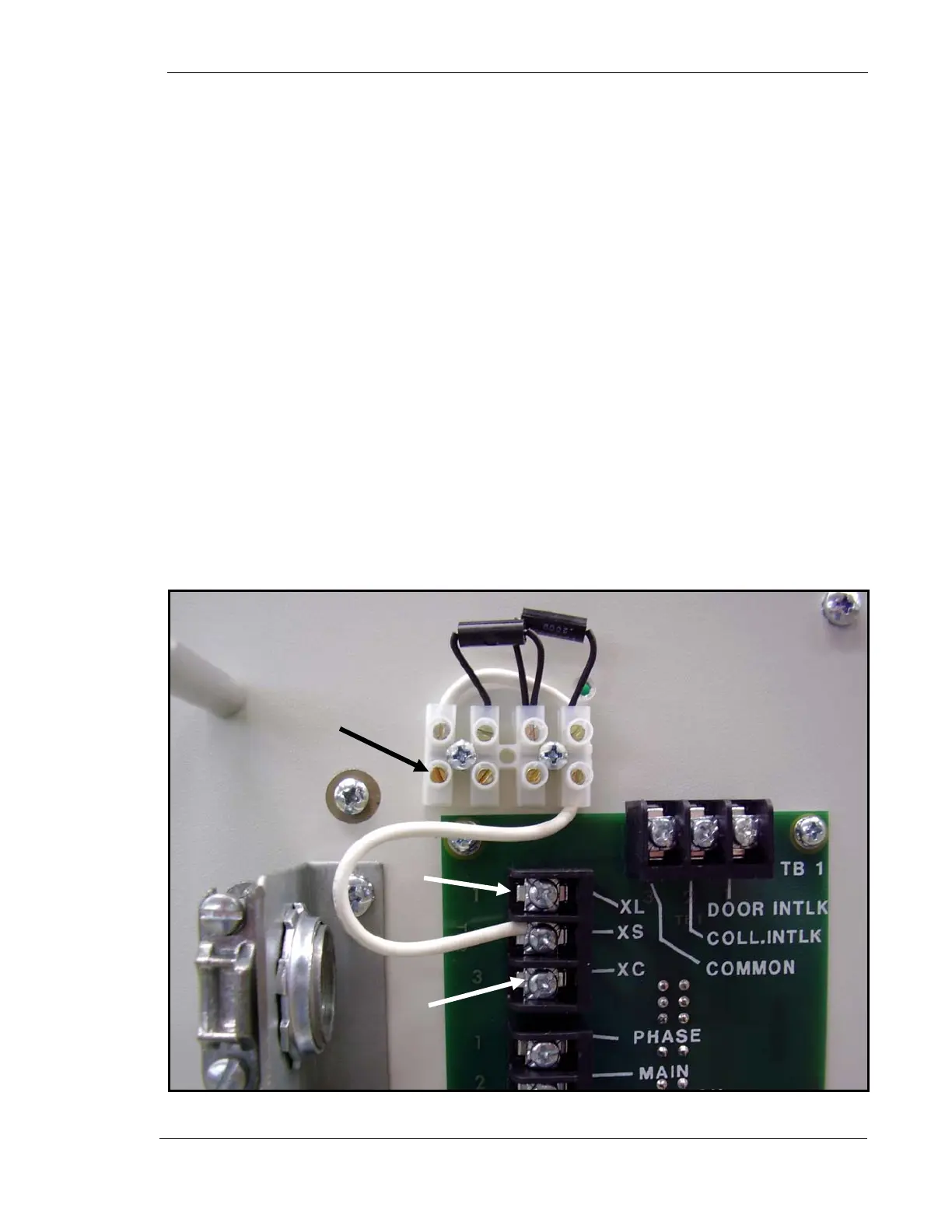

See figure below.

Filament Connections

TB2-3

TB6-1

TB2-1
