Universal APX 525 - Initial Setting of Preheat Pots

APX 525/625 Generator Revision C Service Adjustments
© 2005 Del Medical Imaging Corporation
7/5/2005 Page 135

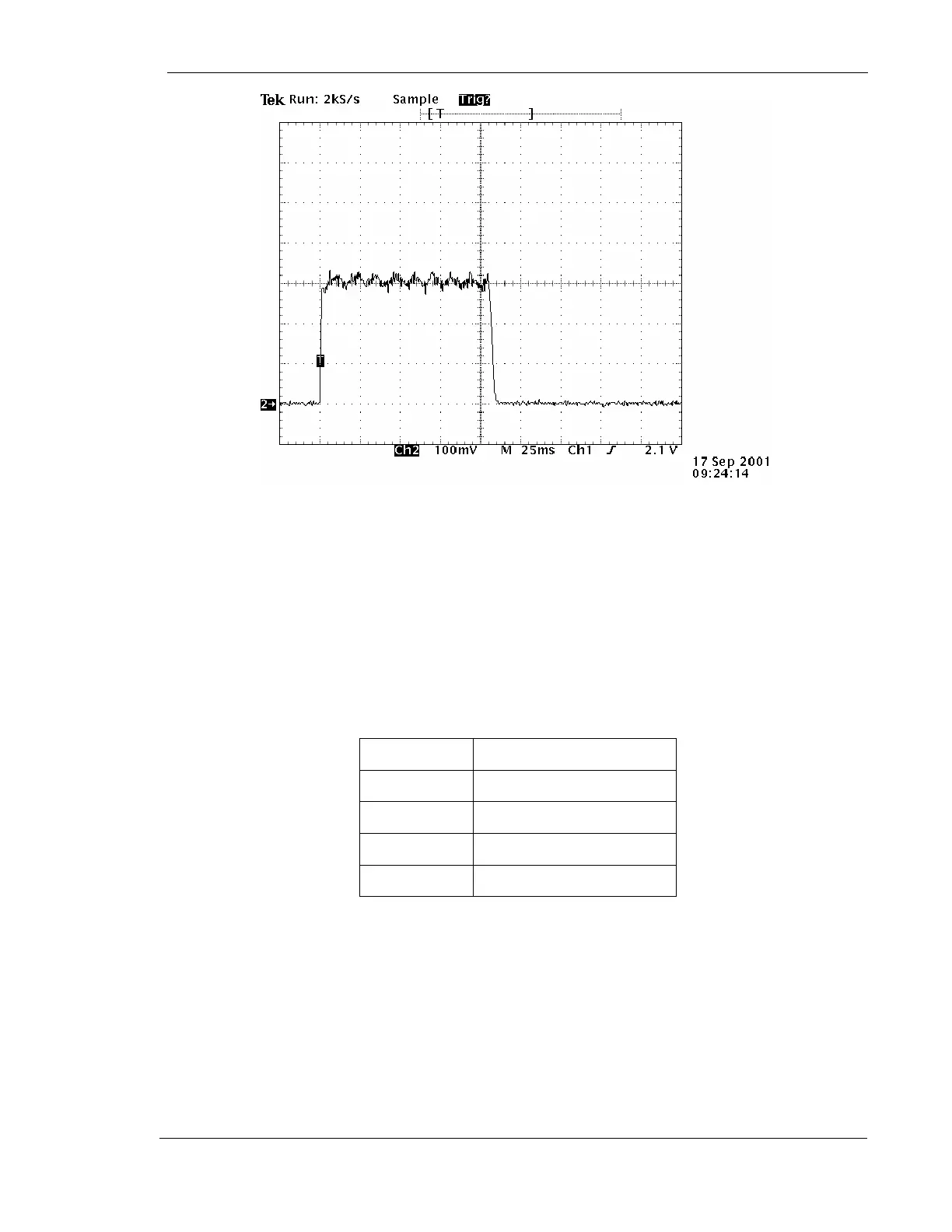

Figure 64 – Proper 300 mA Waveform from Dynalyzer™
4. Turn the X-ray generator OFF. Leave the mA/Rotor board in place on the
extender board
Initial Setting of Preheat Pots
5. Turn the generator ON
6. Set the generator as follows:
Mode
3 point
Focal Spot
Large
kV
84 kV
mA
300 mA
Time
100 mSec
7. Make an exposure and adjust R63 on the mA/Rotor Board so that the waveform
stabilizes at 300 mA.
8. Make additional exposures as necessary and adjust R72 on mA/Rotor Board
(124-0095G1) for a flat waveform.
