Universal APX 525 - Connecting 208 VAC Three Phase Power (30 Kw Only) (636-5010 P1 Transformer)

APX 525/625 Generator Revision C Pre-Installation
© 2005 Del Medical Imaging Corporation
7/5/2005 Page 56
CONNECTING 208 VAC THREE PHASE POWER (30 kW ONLY) (636-5010P1
TRANSFORMER)
Note
This procedure is NOT for 208 VAC 40 kW applications. That procedure
starts on page
83.
Tools Required:
• Ratchet Wrench
• 12” Socket Extension
• 7/16” Socket
• ½ “ Socket
• Diagonal Cutters (Side Cutters)
• Large Flat-Tip Screwdriver
• Small Flat-Tip Screwdriver
• Medium Phillips Head Screwdriver
• Wire Strippers
1. Uncrate transformer and remove cables and accessories.
2. Cut shipping cables (1 in Fig. 1) and remove shipping cardboard (2).

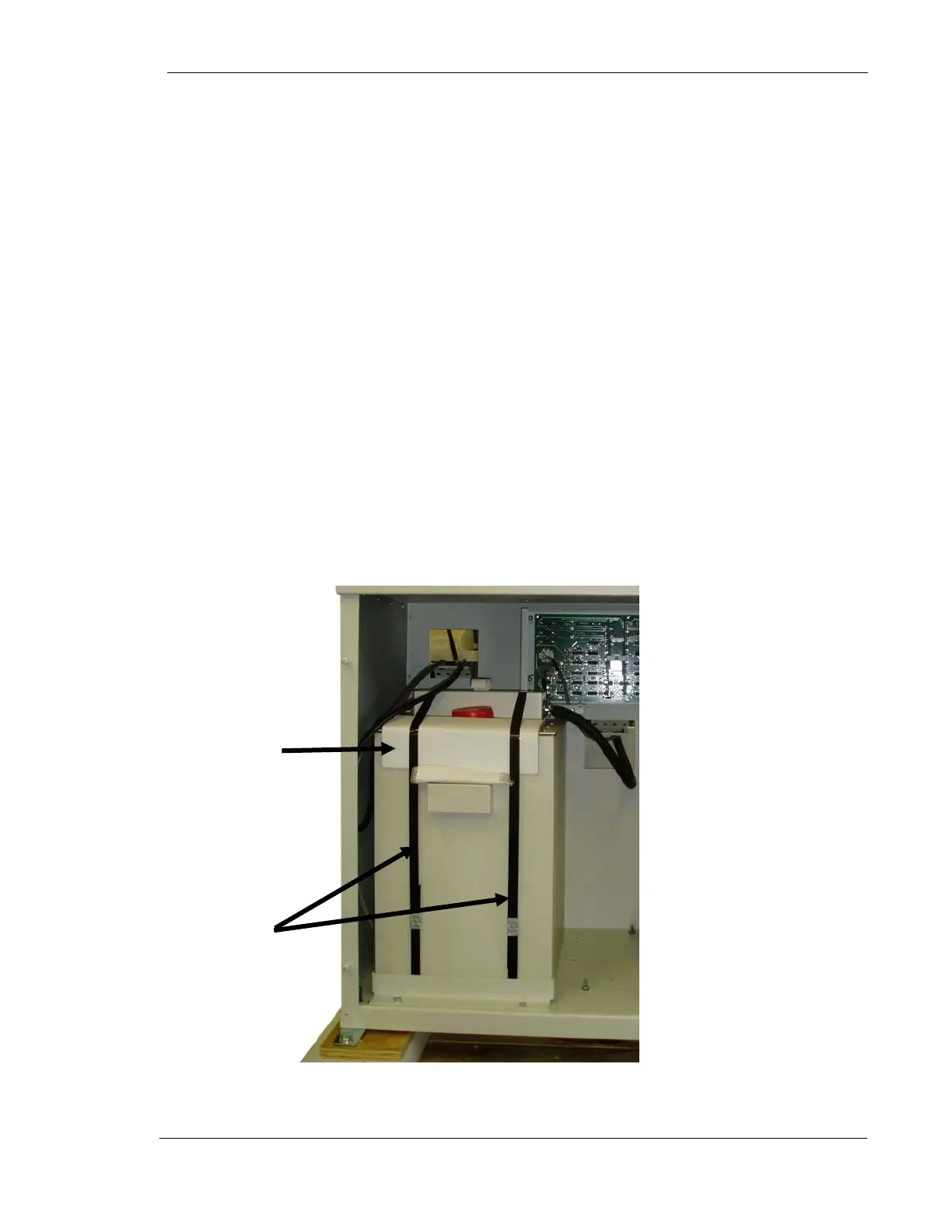

Figure 1. Shipping Straps and Cardboard
1
2
