APX 525/625 Generator Revision C Pre-Installation
©
2005 Del Medical Imaging Corporation
7/5/2005 Page 31
Making Connections (Single Phase)
CONNECTING 208 VAC SINGLE-PHASE POWER (636-0021P2) TRANSFORMER
Tools Required:
• Pliers
• Electrical Tape
• Ratchet Wrench
• 12” Socket Extension
• 7/16” Socket
• ½ “ Socket
• Diagonal Cutters (Side Cutters)
• Large Flat-Tip Screwdriver
• Small Flat-Tip Screwdriver
• Medium Phillips Head Screwdriver
• Wire Strippers
1. Uncrate transformer and remove cables and accessories.
2. Cut shipping straps (1 in Fig. 1) and remove shipping cardboard (2).

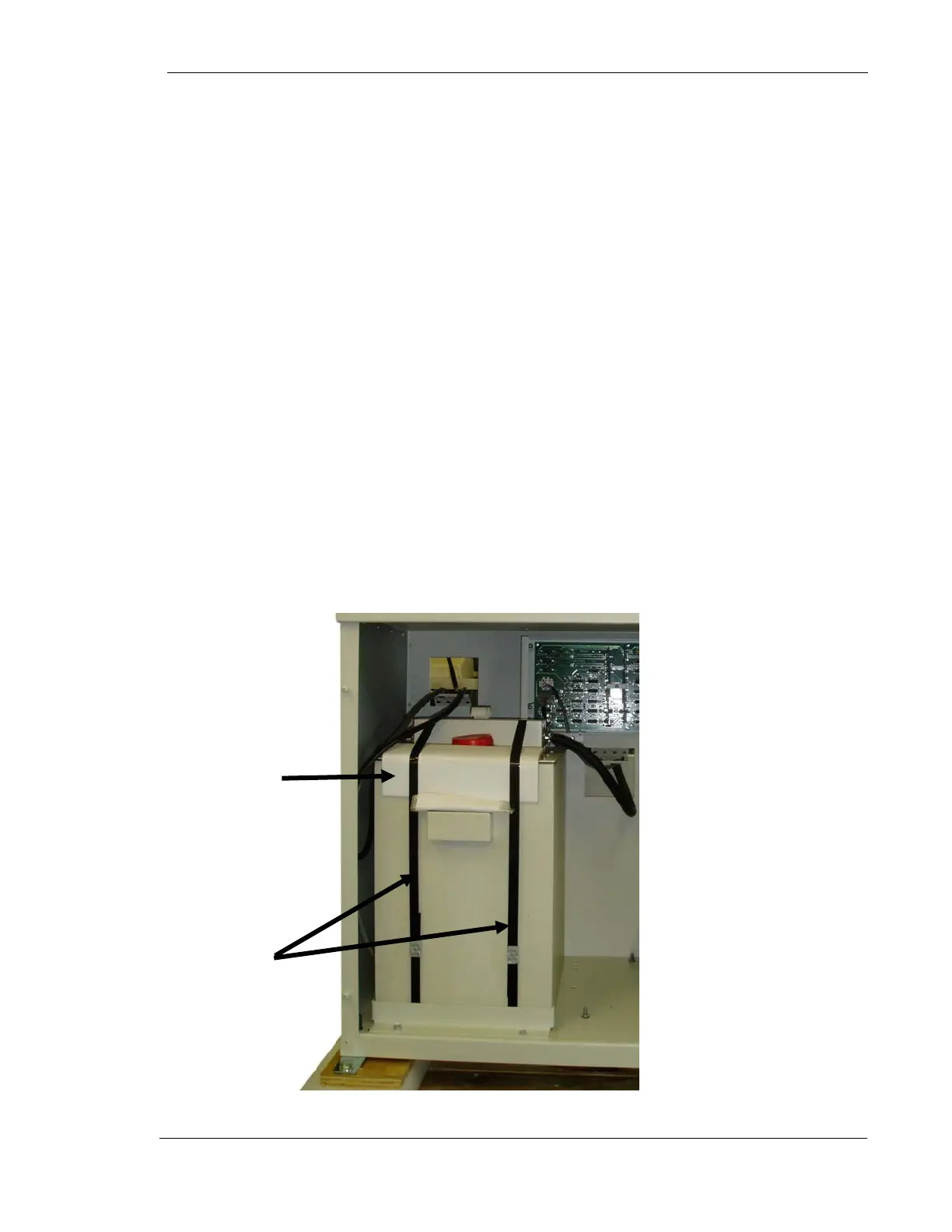

Figure 1. Shipping Straps and Cardboard
1
2
