APX 525/625 Generator Revision C Pre-Installation
© 2005 Del Medical Imaging Corporation
7/5/2005 Page 32
3. Unscrew four inline-transformer mounting bolts and washers (1) and save
for later use.

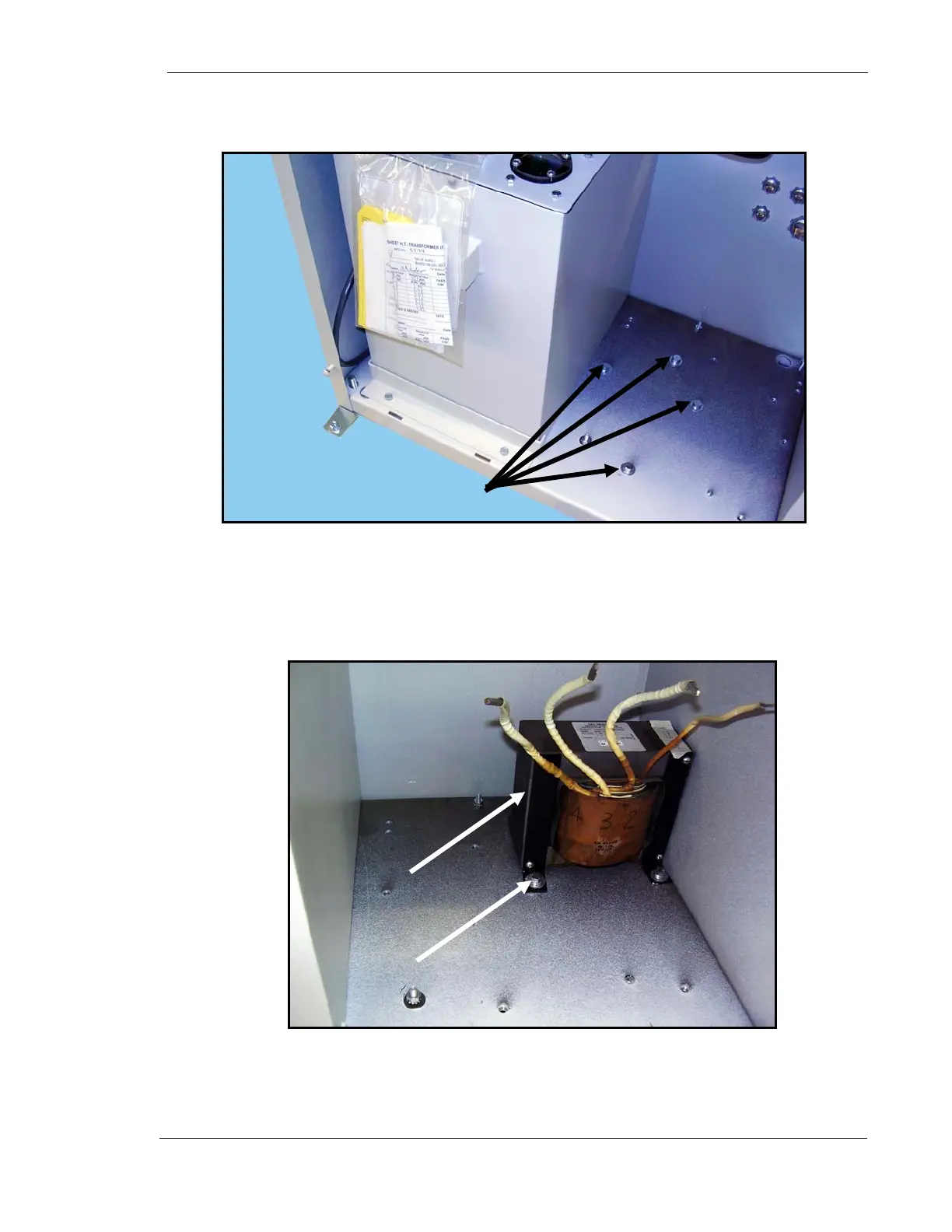

Figure 2. Transformer Mounting Screws
4. Place in-line transformer (1 in Fig. 3) in position shown and secure in
place with four bolts and washers (2) removed in step 3.
Figure 3. In-Line Transformer Mounting
1
2 (x4)
1
