5. Remove main cable (P/N 126-0214G2) from in-line transformer kit. Note
that the wires on one end of the cable are longer than on the other end.
6. Loosen two stress relief clamp screws (1 Fig. 4).
7. Insert the end of the cable with the longer wires (2) into the stress relief
clamp and into the generator cabinet until there is enough wire slack
inside the cabinet for the cable’s ground wire to reach the ground stud on
the cabinet’s floor as shown in Figure 5.
8. Tighten stress relief clamp screws.

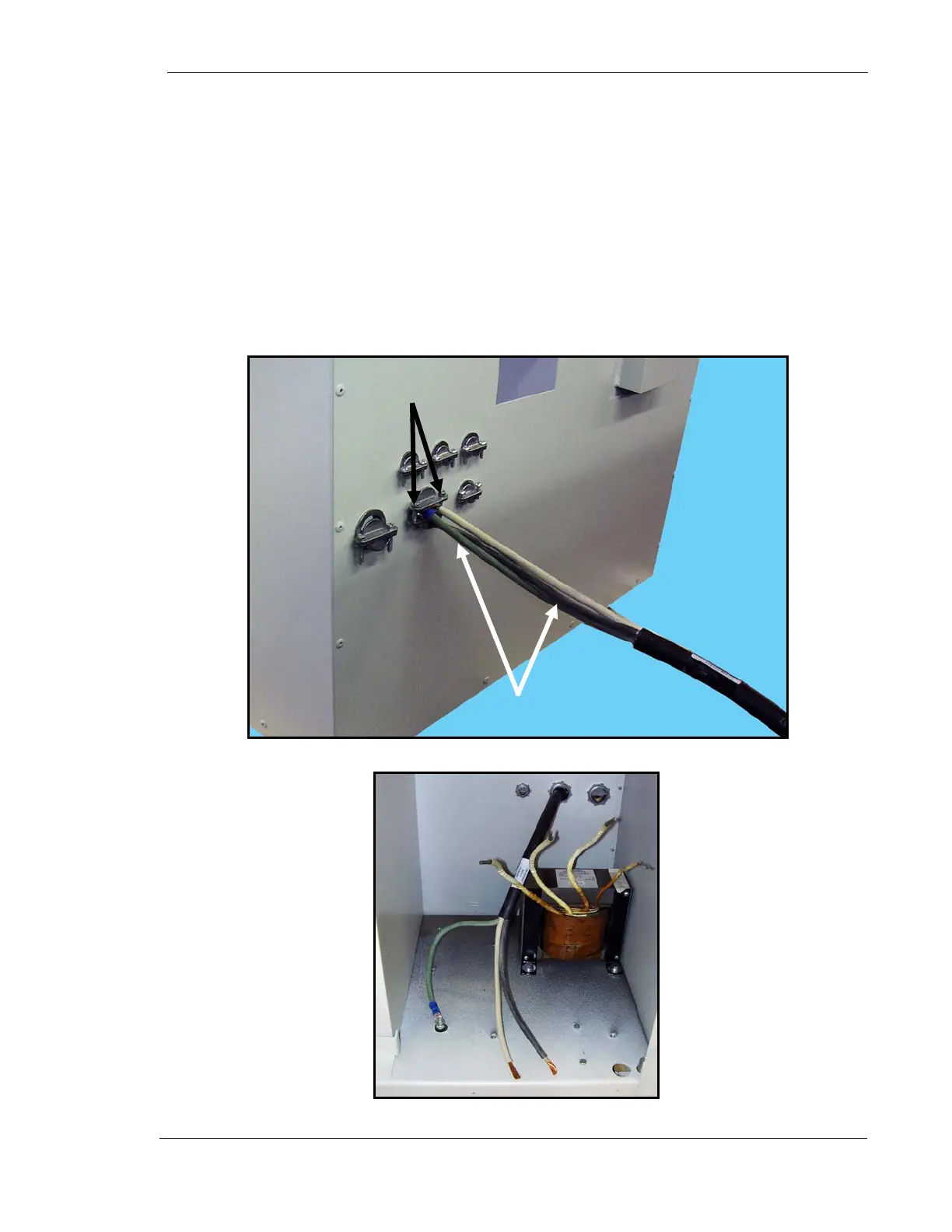

Figure 4. Main Cable Insertion
Figure 5. Ground Stud
1
2
Ground
Stud
