APX 525/625 Generator Revision C Pre-Installation
© 2005 Del Medical Imaging Corporation
7/5/2005 Page 34

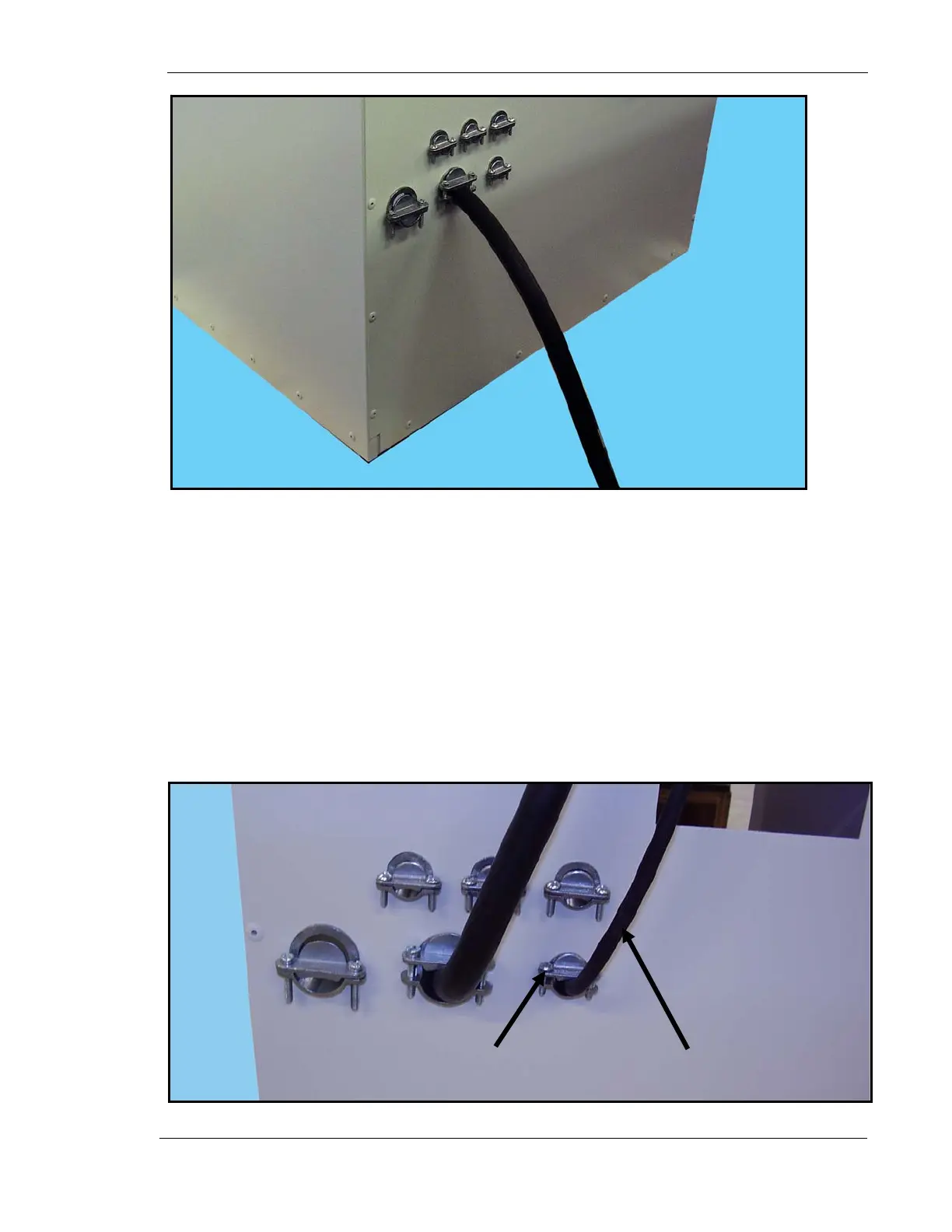

Figure 6. Proper Cable Position
9. Remove secondary cable (P/N 126-0211G1) from in-line transformer kit.
Note that the wires on one end of the cable are longer than the other end.
10. Loosen two stress relief clamp screws (1 Fig. 7).
11. Insert the end of the cable with the longer wires (2) into the stress relief
clamp and into the generator cabinet until there is enough wire slack
inside the cabinet for the cable to reach all wires on the transformer.
12. Tighten stress relief clamp screws.
Figure 7. Secondary Cable Insertion
1
(
x2
)
2
