APX 525/625 Generator Revision C Pre-Installation
©
2005 Del Medical Imaging Corporation
7/5/2005 Page 35
Warning: Make sure that main power source disconnect is turned off
and tagged “Machine is Being Serviced” before doing the following
steps. You may get fatally shocked if you do not.
13. Turn off main power disconnect switch for generator’s outside power
source.
14. Prepare main power cable for installation. This cable is customer
supplied. For the generator end of the cable, the outer insulation should
be stripped back to allow 12” (30cm) of internal wire to be exposed. Each
internal wire should have about ½” (12mm) of insulation stripped from
each end. Also, the ground wire of the cable should be fitted with an eyelet
with a ¼” [7mm] I.D. clearance hole as shown below.

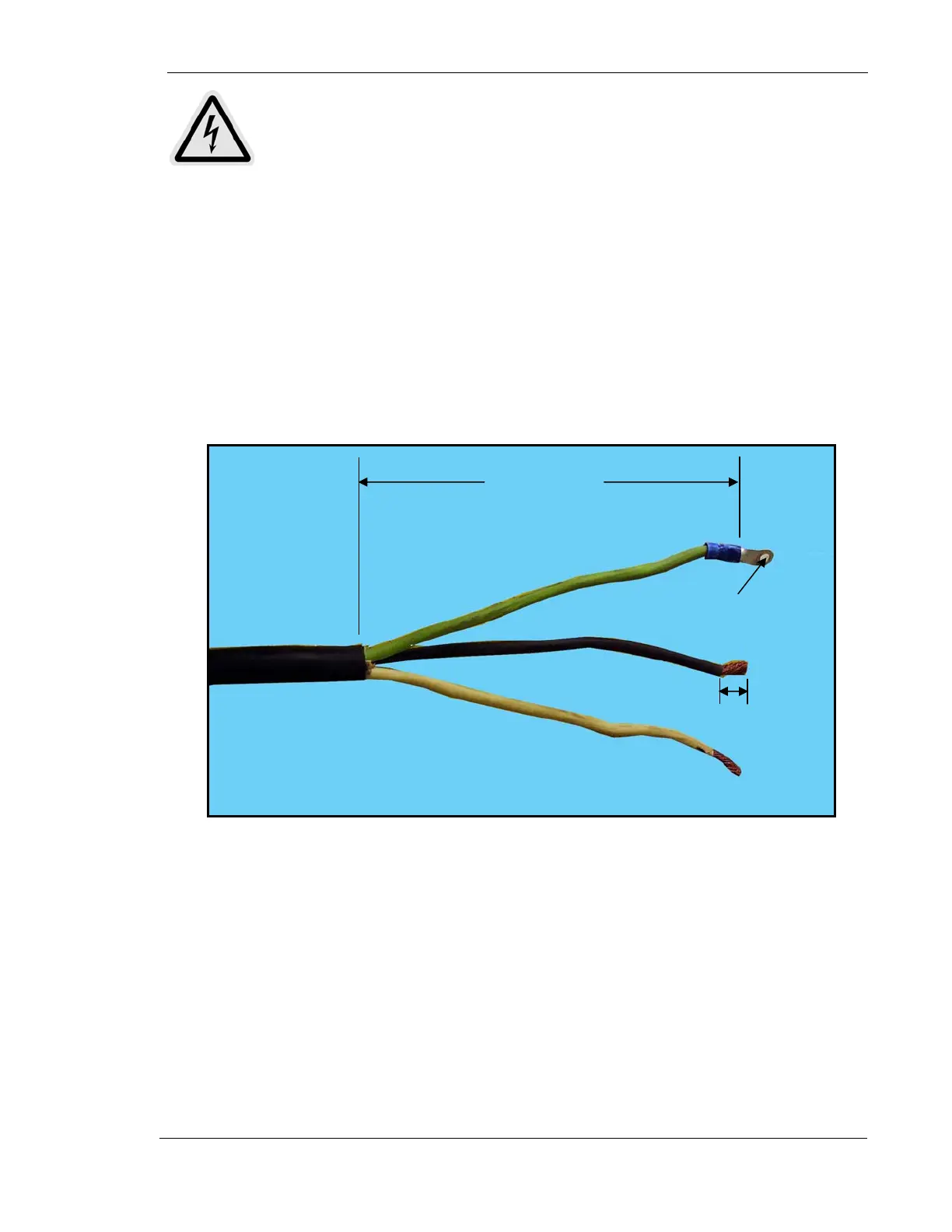

Figure 8. Main Power Cable Preparation
15. Connect main power cable to local source according to local electrical
safety standards.
12” (30mm)
1/4” (7mm) Dia.
1/2” (12mm)
To Next Page
