16. Loosen two stress relief clamp screws (1 Fig. 9).
17. Insert the end of the main power cable (2) into the stress relief clamp and
into the generator cabinet until there is enough wire slack inside the
cabinet for the cable’s ground wire to reach the ground stud on the
cabinet’s floor as shown in Figure 10.
18. Tighten stress relief clamp screws.

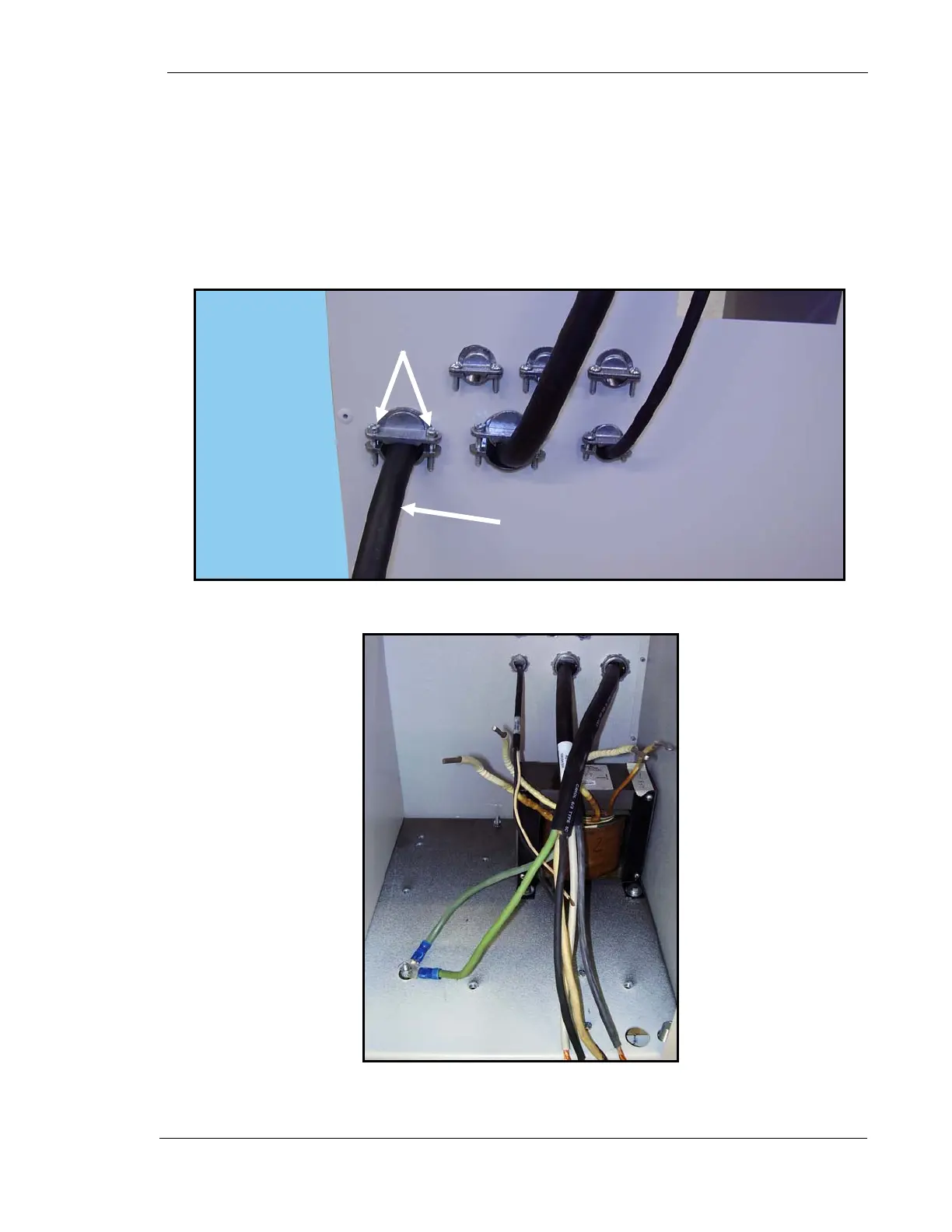

Figure 9. Main Power Cable Stress Relief
Figure 10. Ground Stud
2
1
Ground
Stud
