APX 525/625 Generator Revision C Pre-Installation
©
2005 Del Medical Imaging Corporation
7/5/2005 Page 55
Connection Information for Kit 636-0070P1 –
For 40kW 208 V Applications only

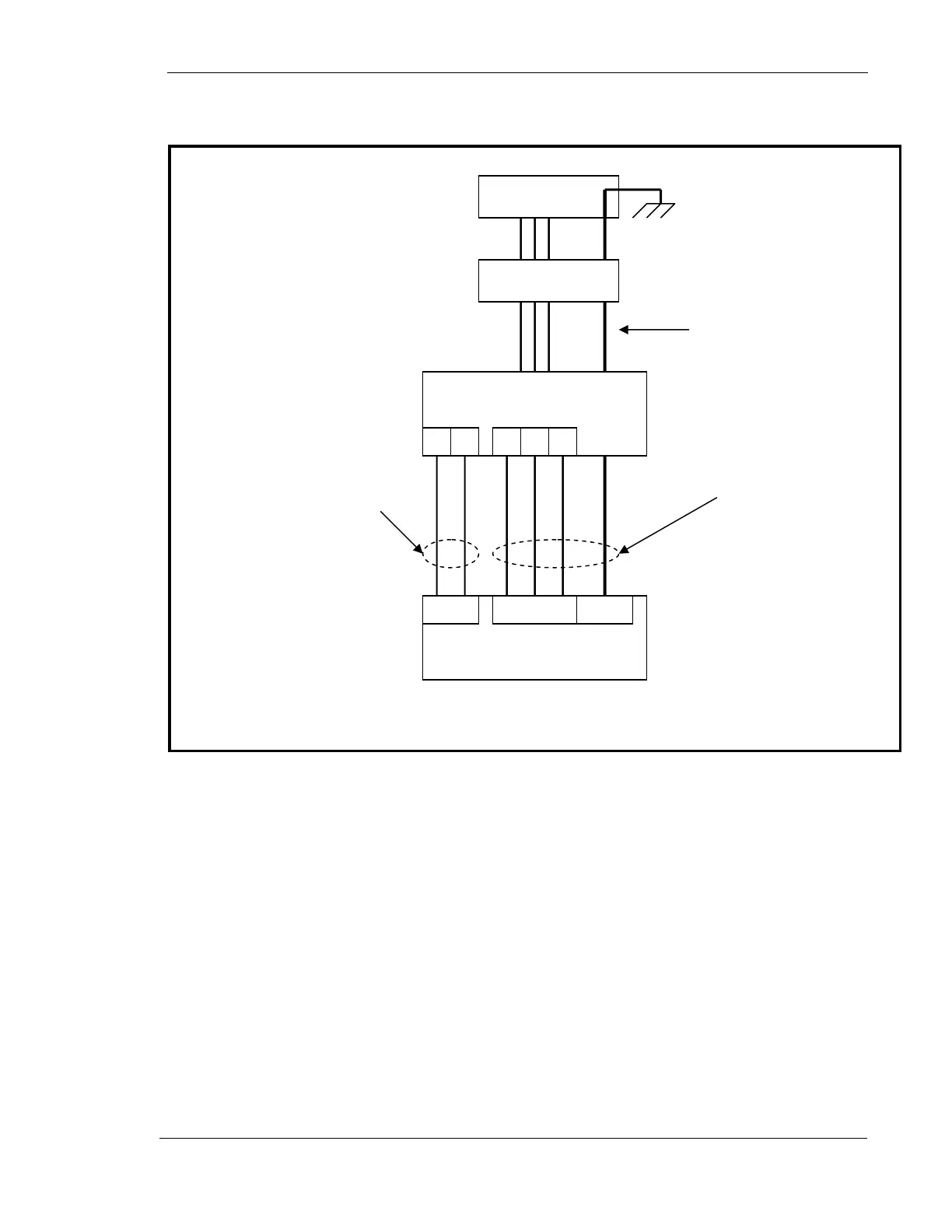

Interconnection Diagram – Three Phase Line Matching Transformer
For 40kW 208 VAC Applications Only
DISTRIBUTION
TRANSFORMER
DISCONNECT
AND FUSES
LINE MATCHING
TRANSFORMER
636-0070P1
POWER MODULE
CUSTOMER PROVIDED
WIRING:
3 AC CONDUCTORS AND
1 GROUND
TB2 TB1 GND
CABLE
#126-0211G1
2 COND. #16 AWG
4 4 6 6 6
CABLE
#126-0208G1
4 COND. 10 AWG
THREE PHASE LINE MATCHING CONFIGURATION
To Next Page
