APX 525/625 Generator Revision C Service Adjustments
© 2005 Del Medical Imaging Corporation
7/5/2005 Page 107

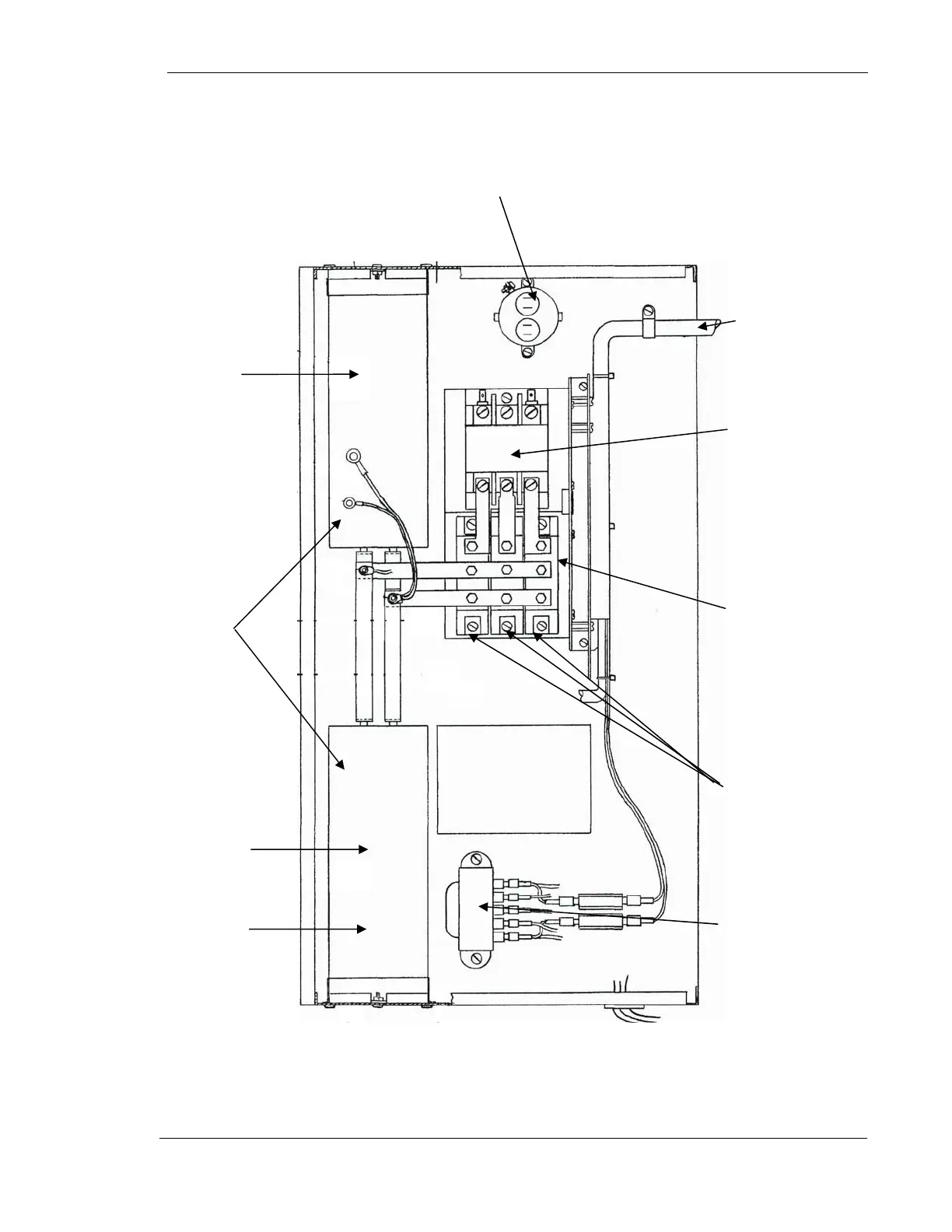

Figure 49 - Bottom Chassis Assembly
C3
Inverter Power
Supply
Capacitors
C1 (Top)
C2 (Bottom)
Operator Console
Power Supply
Transformer (T2)
DP1, DP2, DP3
Inverter Power
Supply Diode
Blocks
Line Contactor (M1)
Autotransformer
(T1)
Rotor Capacitor (C7)
P1
