APX 525/625 Generator Revision C Service Adjustments

2005 Del Medical Imaging Corporation

7/5/2005 Page 114

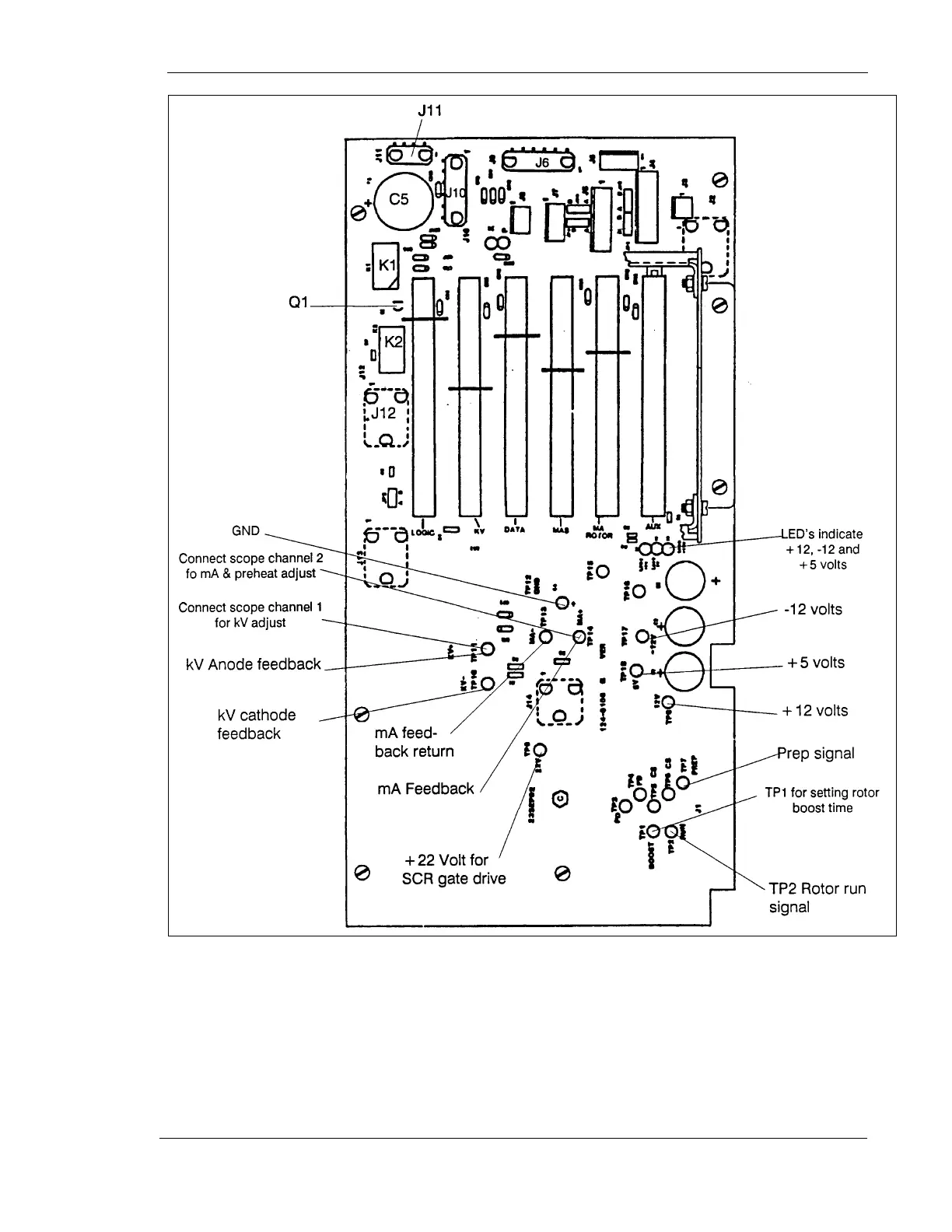

Figure 56 - Mother Board
