APX 525/625 Generator Revision C Operating Manual
©
2005 Del Medical Imaging Corporation
7/5/2005 Page 6
• 3 Point Mode: Gives operator free selection of exposure techniques,
including kV, mA, and Time. Additionally, the calculated mAs of the
exposure will be displayed in the center portion of the LCD screen.
Software will inhibit selection of techniques that are beyond the
limitations of the x-ray tube.

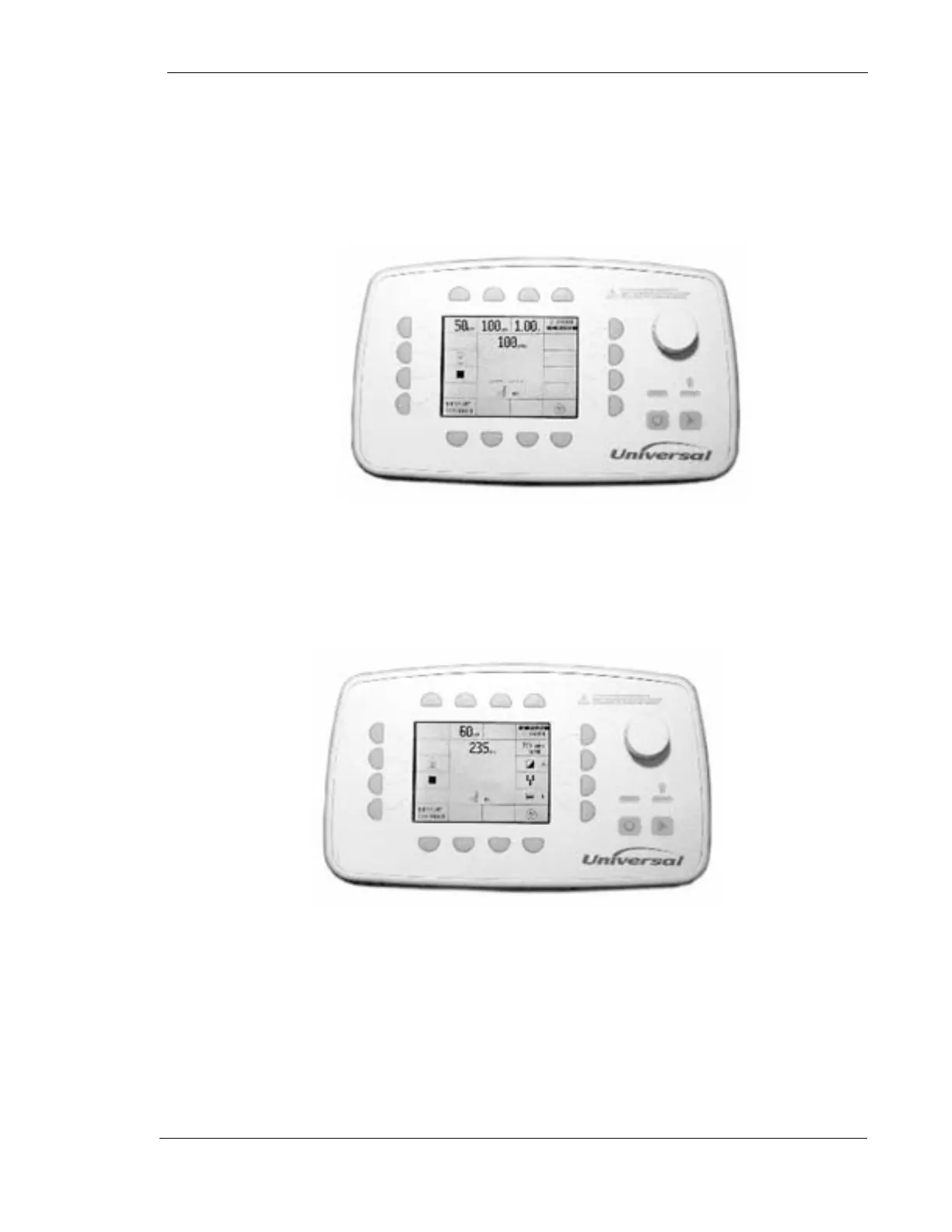

3 Point Operator’s screen
• AEC – Automatic Exposure Control. Lets the operator select kV,
Backup mAs, ion chamber fields, two film/screen combinations,
density, and image receptors.
AEC Mode Operator’s screen
• APR - Anatomically Programmable Radiography. The operator can select from
up to twelve anatomic regions, with up to twelve different views per region, for
a total of up to 96 different pre-programmed techniques, designed to optimize
exposures for typical patient studies.
