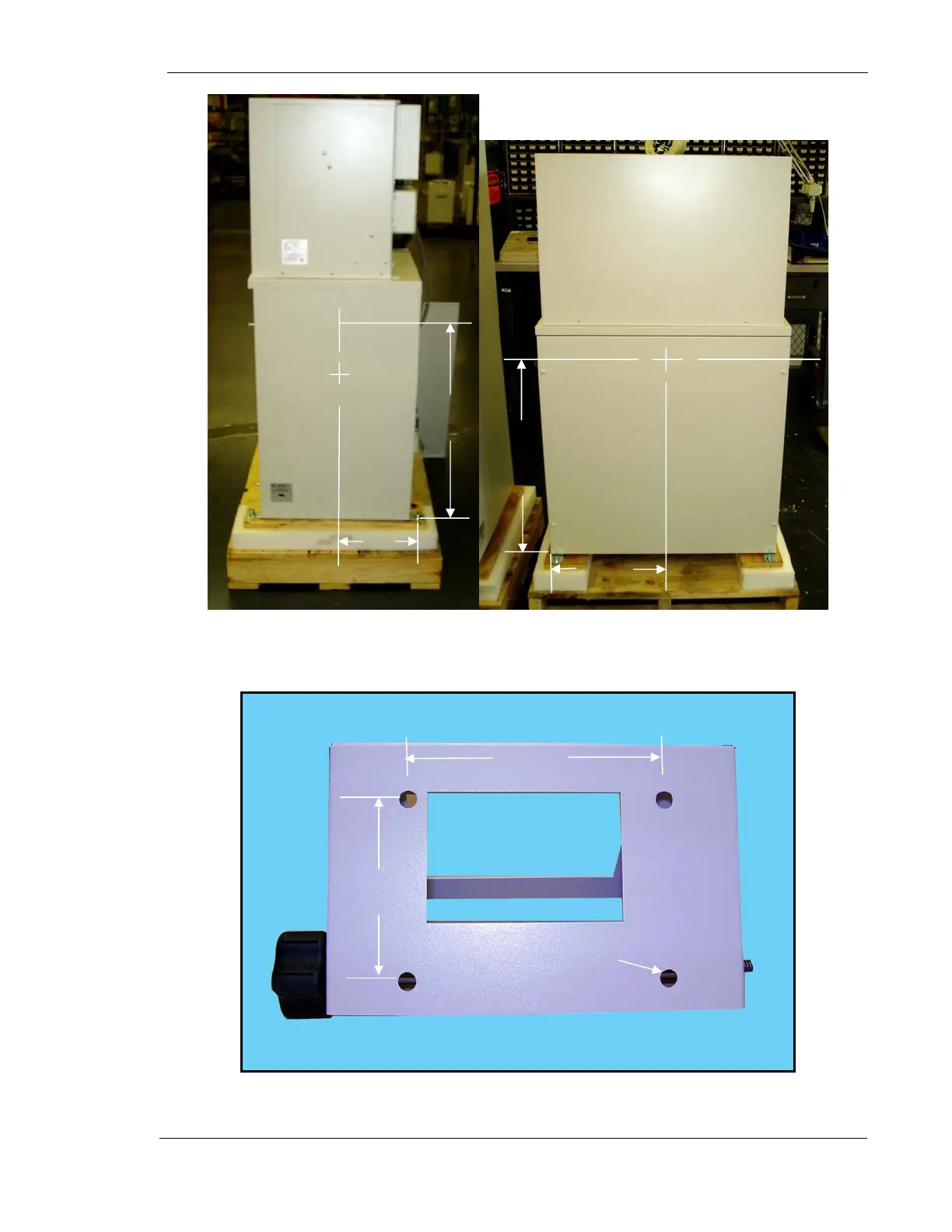

Figure 41 – Rack Cabinet Center of Gravity
Control Console Wall Bracket Mounting Hole Dimensions
26"
660mm
9.5"
241mm
26"
660mm
12"
305mm
2.75"
70mm
4.0"
101.6mm
Ø .281" (4)
Ø 7.14mm (4)
