APX 525/625 Generator Revision C Pre-Installation
©
2005 Del Medical Imaging Corporation
7/5/2005 Page 50

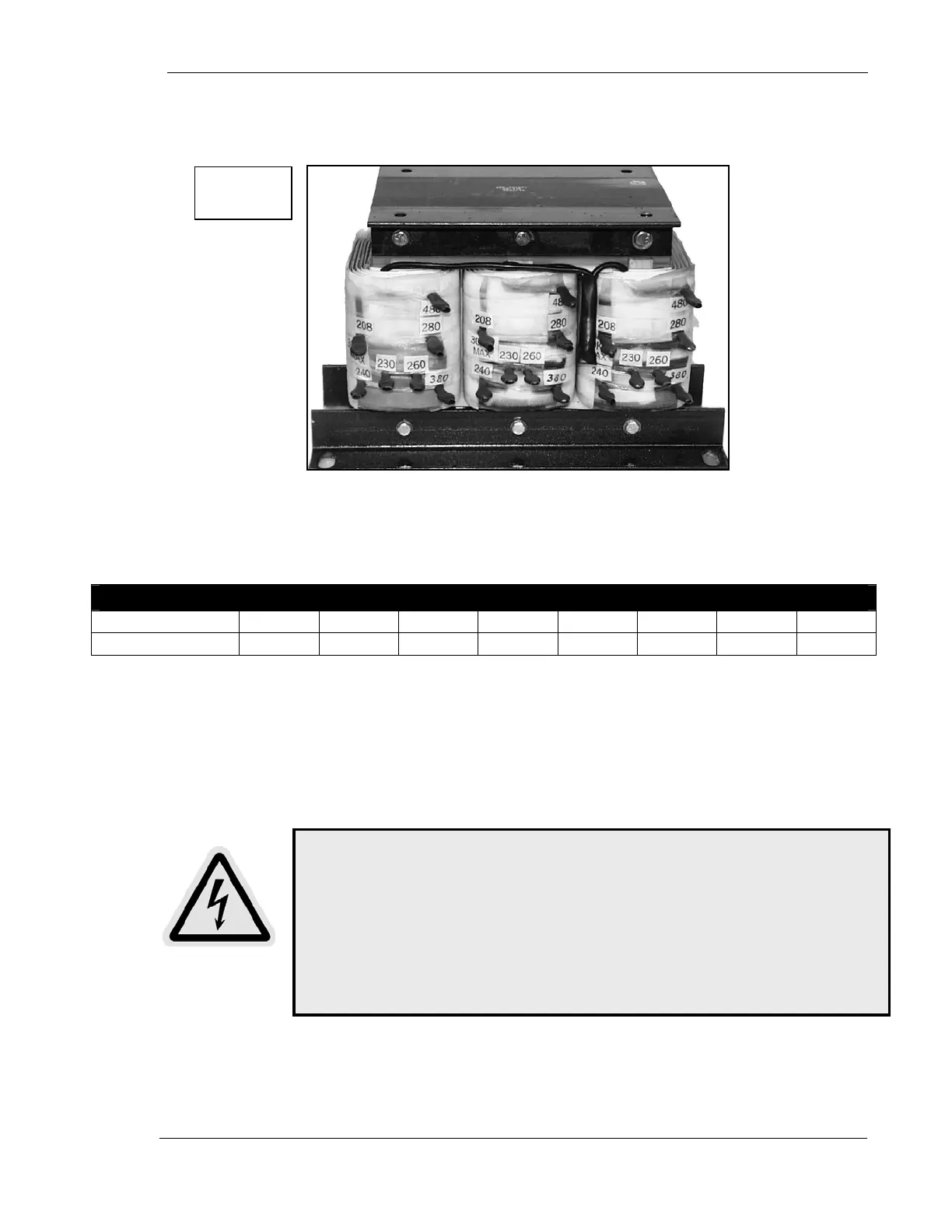

Connection Information for Kit 636-5010P1
#636-5010P1 - Three Phase Line Matching Autoformer for 30 kW & 40 kW
Applications
Do Not Use for 40kW 208VAC Applications
3-Phase Tap Voltages
Tap #1 Tap #2 Tap #3 Tap #4 Tap #5 Tap #6 Tap #7 Tap #8
636-5010P1 0V 208V 230V 240V 260V *280V 380V 480V
*Note
If the voltage at tap #6 exceeds 290 volts as actually measured, the
machine will not work properly. In this case, use Tap #5 (260V)
instead.
Caution: The line matching transformer does not provide any
isolation between the incoming line and its outputs. All output
voltages will have the same relationship to earth ground as the
incoming mains voltages. Use appropriate caution when working
with any live mains voltages. Always ensure that the power has been
shut off at the mains disconnect switch before attempting to make
any connections to the line matching transformer or the generator
power module.
Brackets
O
tional
To Next Page
