Figure 7. Proper Cable Position
14. Connect red, white and black wires (1,2 & 3 in Fig. 8) to 280 VAC Burndies on
transformer as shown below . It does not matter which color wire goes in
which position. Securely wrap each Burndy connection with electrical tape.
15. Connect ground wire to lug (4 in Fig. 8).

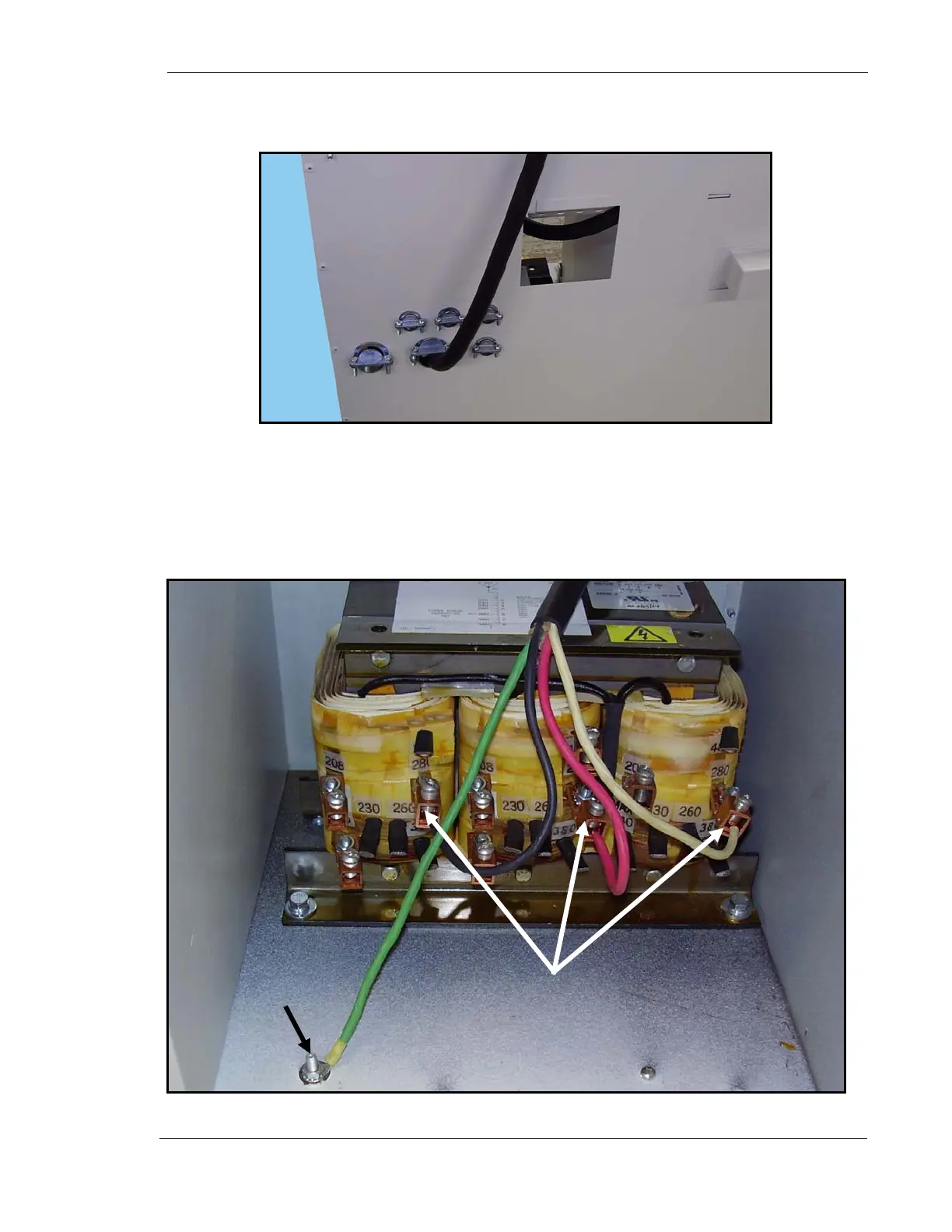

Figure 8. Main Cable Connections
4
1, 2 & 3
