APX 525/625 Generator Revision C Pre-Installation
©
2005 Del Medical Imaging Corporation
7/5/2005 Page 77

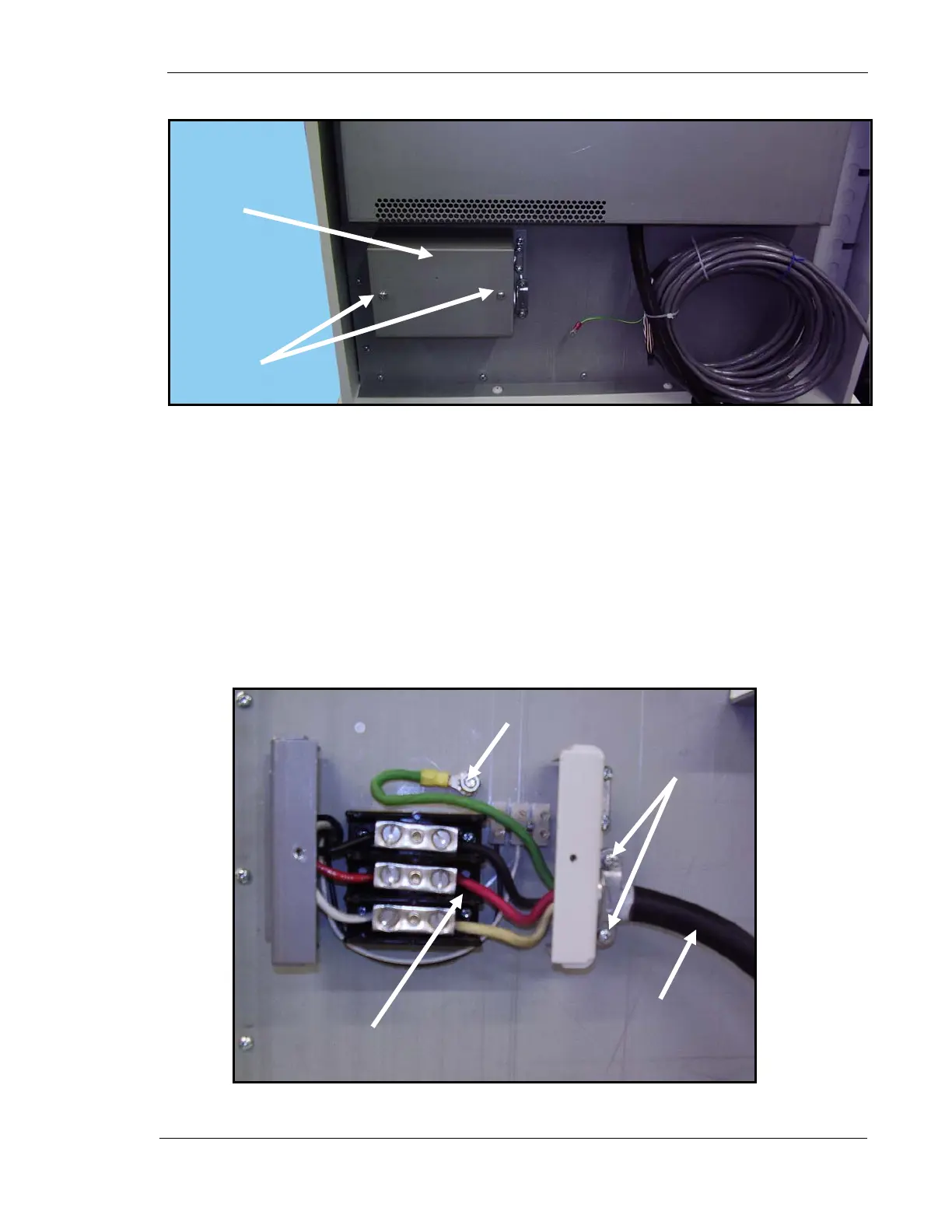

21. Unscrew two rear cover screws (1 in Fig. 11) and remove rear cover (2).
Figure 11. Rear Cover
22. Loosen two stress relief clamp screws (1 Fig. 12).
23. Insert the end of the main cable (2) (P/N 126-0208G1) into the stress relief
clamp until the black insulation on the cable is within the stress relief clamp as
shown in Figure 12.
24. Tighten stress relief clamp screws.
25. Connect red, white and black wires to TB1 as shown below. It does not matter
which color wire goes in which position.
26. Connect ground wire to lug (3 in Fig. 12).
Figure 12. Main Cable Upper Connections
1
2
TB1
3
2
1
To Next Page
