11. Connect the YC1 connector on the fax control PCB
assembly to the YC15 connector on the engine PCB.
12. Insert the fax control PCB assembly to the shield box
so that the projection of the fax control PCB
assembly is positioned to the slit of the shield box.
13. Secure the fax control PCB assembly using the three
TP tap tight screws M3 × 6.
Take care that the ground wire is not put on the frame
section of the rear cover.
Attach the NCU PCB assembly.
14. Connect the NCU wire connector on the NCU PCB
assembly to the YC2 connector on the fax control
PCB assembly.
15. Secure the NCU PCB assembly using the four TP
tap tight screws M3 × 6, paying attention so that the
tape section of the shield box does not contact with
the PCB.
YC1
YC15
Fax control
PCB assembly
Slit
Projection
TP tap tight screws M3 × 6
TP tap tight screw M3 × 6
Shield box
Connector
Connector
YC2
NCU PCB assembly
NCU wire connector
Connector
TP tap tight screws M3 × 6
Tape section
TP tap tight screws M3 × 6
NCU PCB assembly

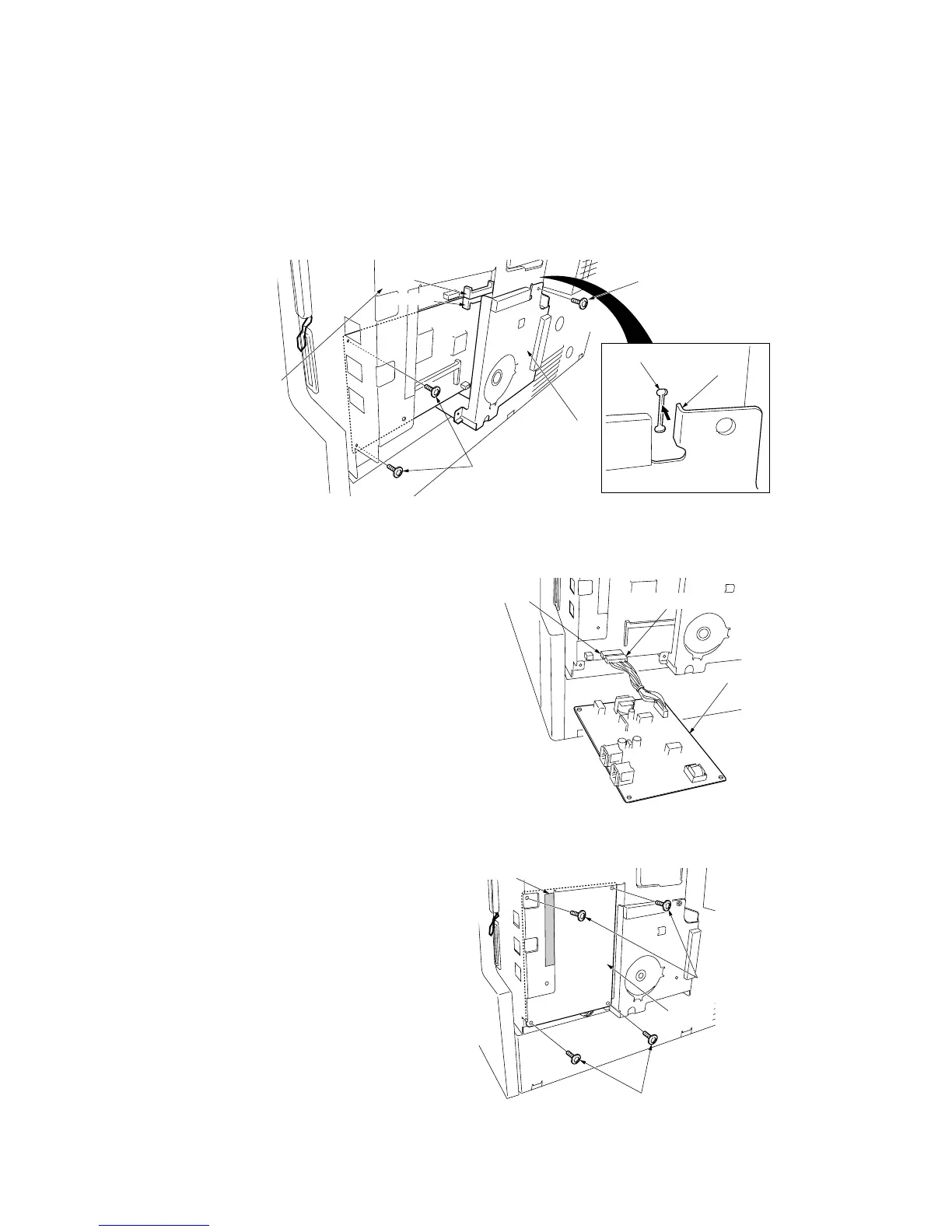

Figure 1-3-70
