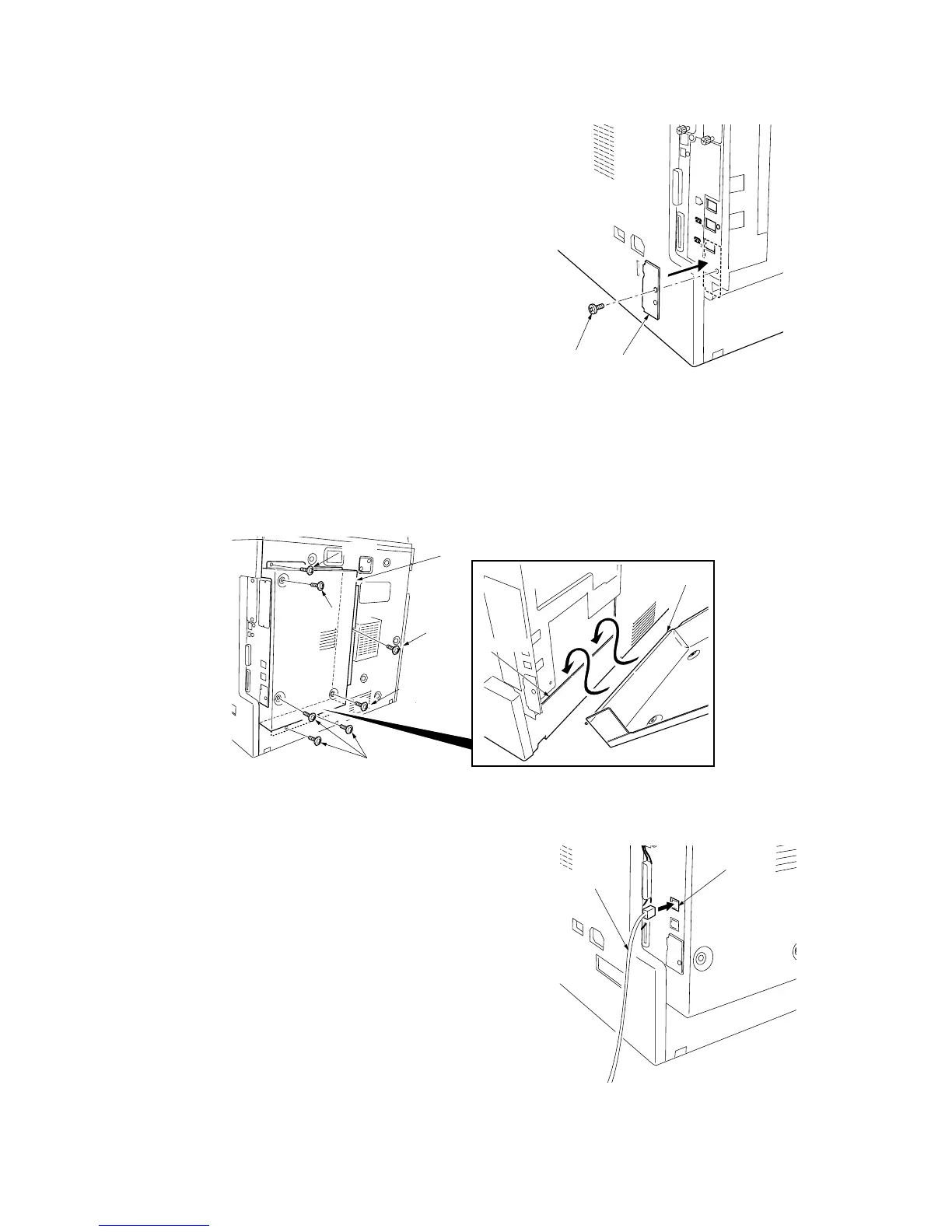

Attach the modular cover.
16. Attach the modular cover that has been removed by
Procedure 8 with the screw to the position shown in
the illustration.
Install the shield cover.
17. Insert the lower part of the shield cover that has been
removed by Procedure 7 into the shield box and then
attach it with the six screws and TP tap tight screw
M4 × 6 to its original position.
Connect the telephone line to the line terminal.
18. Insert the modular connector cable to the line
terminal to connect it to the telephone line.
For 120 V specifications, use supplied modular cord
B.
Screw
Modular cover
Screw
Screws
Shield cover
TP tap tight
screw M4 × 6
Screw
Screw
Lower part
Shield box
Line terminal
Modular connector cable
Figure 1-3-75
Figure 1-3-74
Figure 1-3-73
