General Information
P/N 06-237041-001 1-7 February 2011
1-7.1.2 2-TIERED MAIN ENCLOSURE
Guidelines for internal configuration of the 2-Tiered Main Enclosure are listed below:
• Top Tier: Always reserved for the Power Supply/PMU Assembly and Main Controller Board with
keypad/display. The System Enclosure door is designed for the LCD Display to show through
the window at this location. The MCB with keypad/display is designed to fit over the assembly in
a hinged arrangement in the Top Tier.
• Bottom Tier: Typically reserved for two standby batteries (12-AH pair or 17-AH pair) on a tray.
Use of larger capacity battery pairs(greater than 17-AH) requires purchasing the separate Large
Battery Enclosure. An Expansion Card Cage or Power Supply/PMU Assembly may optionally be
located here instead.

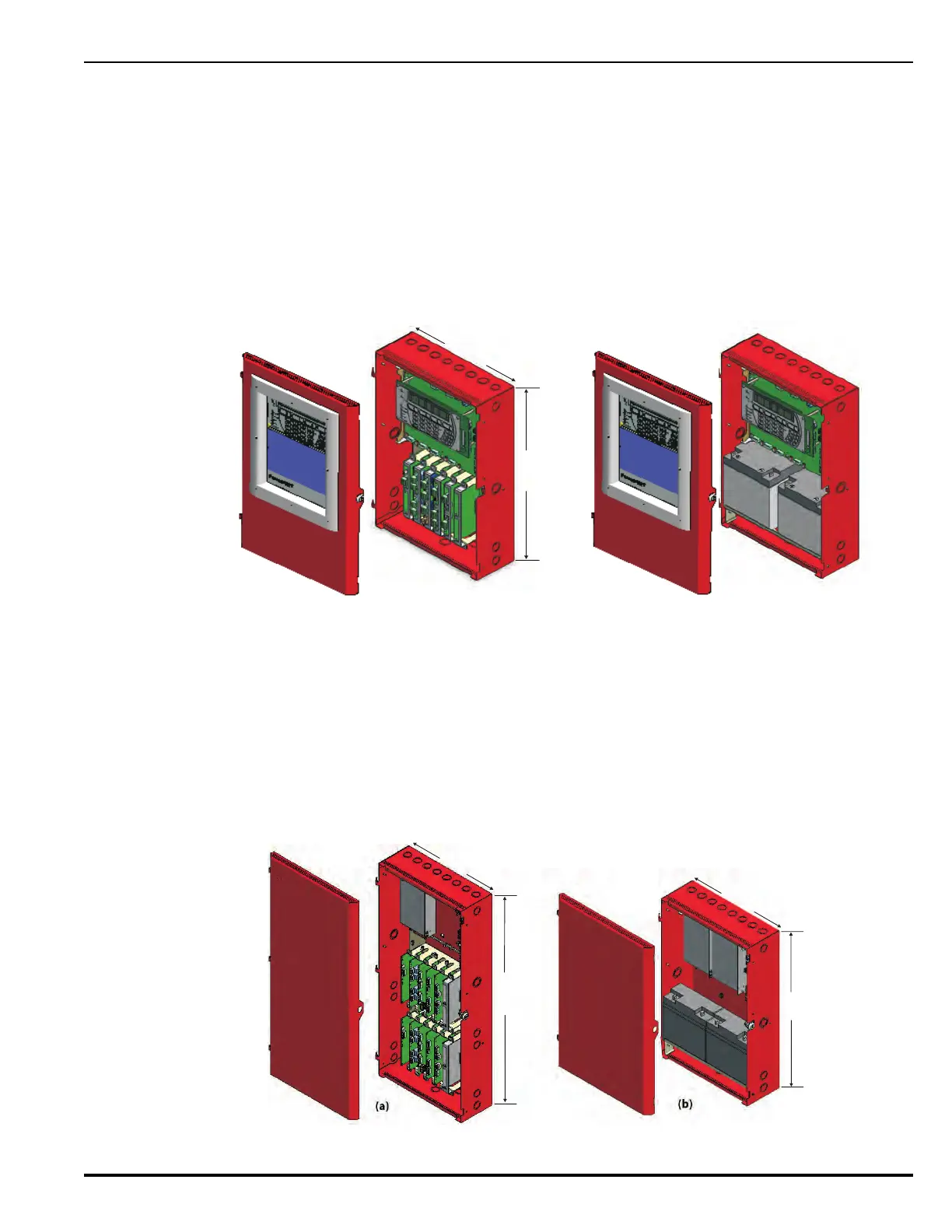

Figure 1-4. Illustration of Typical 2-Tiered Main Enclosure Configurations
1-7.1.3 EXPANSION ENCLOSURES
The FenwalNET 8000-ML system is capable of substantial expansion in its total number of add-on
cards, Power Supply/PMU Assemblies and batteries. The illustrations below demonstrate available
ways of expanding the system. Figure 1-5a shows the large Expansion Enclosure with a power
supply/PMU Assembly and two expansion card cages. Figure 1-5b shows the small Expansion
Enclosure with a Power Supply/PMU Assembly and standby batteries installed. The dimensions of
the small and large expansion enclosures are exactly the same as the dimensions of the 2-tiered and
3-tiered Main Enclosures. The only difference between the Main and Expansion Enclosures is that
the Expansion Enclosure does not include a window in the door.
Figure 1-5. Large Expansion Enclosure (a) and Small Expansion Enclosure (b)
22.50 in.
(571.5 mm)
14.375 in.
(365.125 mm)
22.50 in.
(571.5 mm)
14.375 in.
(365.125 mm)
31.50 in.
(800.10 mm)
14.375 in.
(365.125 mm)
