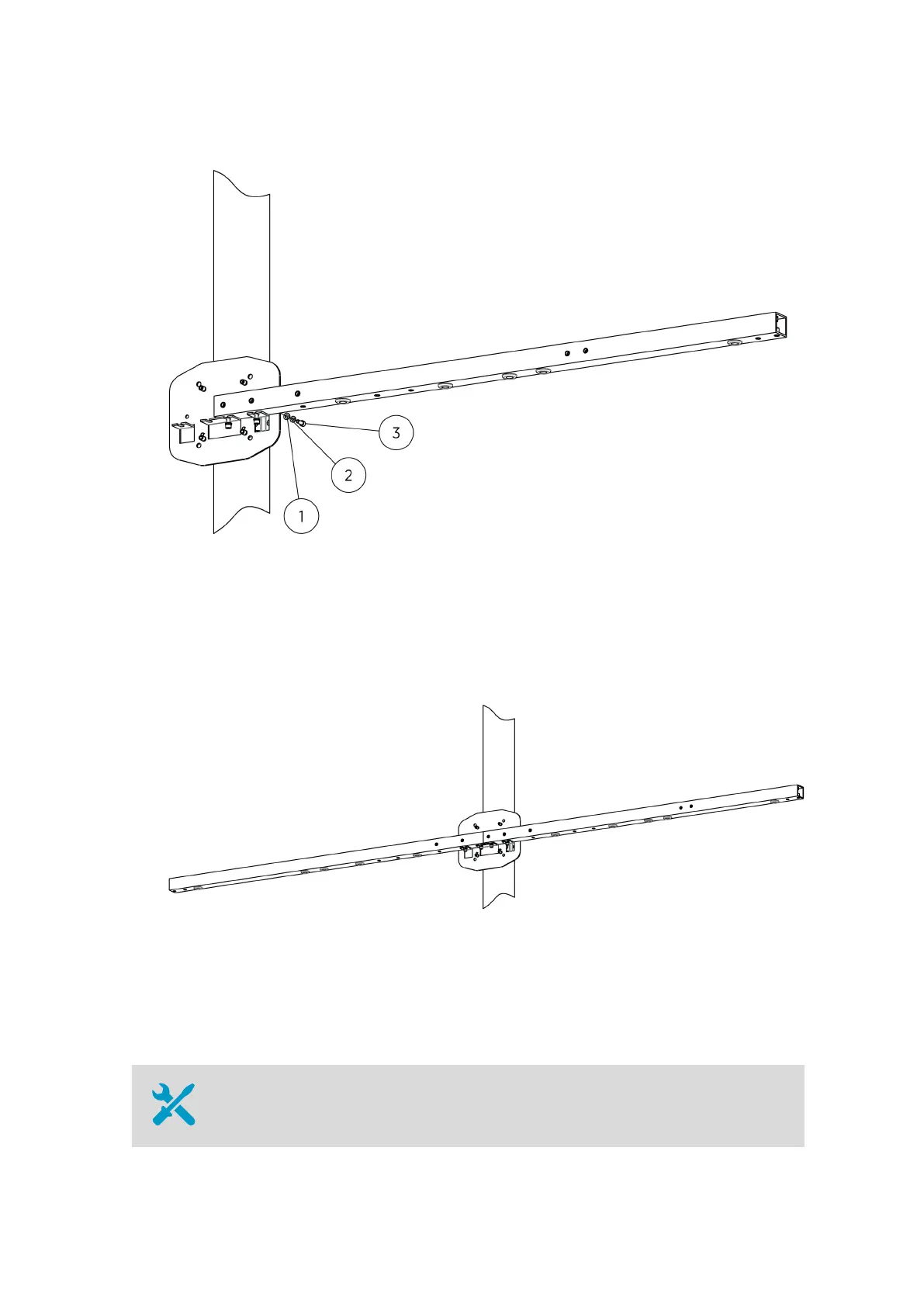

3. Attach the sensor support arm to the mounting plate.

1 Flat washer A6.4 DIN125 (3 pcs)

2 Spring lock washer B6 DIN127 (3 pcs)

3 Hex screw M6×16 DIN912 (3 pcs). Tightening torque 5 Nm.

4. If you are installing the full-length sensor support arm, attach the other half of the

sensor support arm to the mounting plate.

10.5

Mounting Full-length Sensor Support

Arm on DKE200

5‑mm Allen key

Chapter 10 – Sensor Support Arm Installation
