Vaisala AWS310-SITE - Mounting Half-length Sensor Support Arm on DKE200

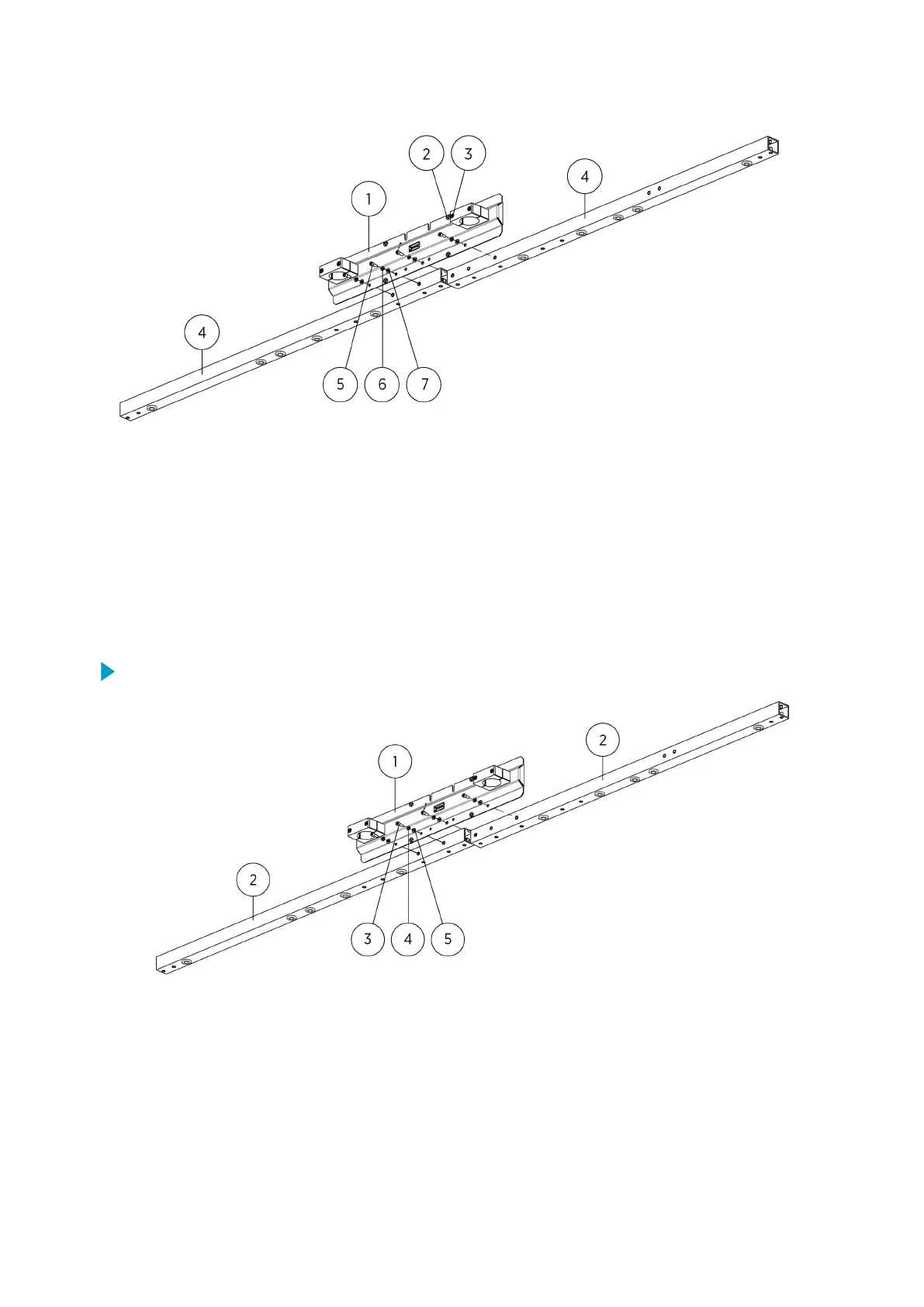

Figure 30 DKE200SUP2 Installation Accessories
1 Exel mast adapter (DRW228699)
2 Hex screw M6×70 DIN912 A4 (4 pcs)
3 Flat washer A6.4 DIN125 (4 pcs)
4 Sensor support arm (10391)
5 Hex screw M6×16 DIN912 A4 (4 pcs)
6 Spring lock washer B6 DIN127 (4 pcs)
7 Flat washer A6.4 DIN125 (4 pcs)
1. Attach the sensor support arms to the mast adapter.
1 Exel mast adapter
2 Sensor support arm
3 Hex screw M6×16 DIN912 A4 (4 pcs). Tightening torque 5 Nm.
4 Spring lock washer B6 DIN127 (4 pcs)
5 Flat washer A6.4 DIN125 (4 pcs)
AWS310/AWS310-SITE Installation Manual M211584EN-F
100
