Vaisala AWS310-SITE - Figure 46 APPK-SET106 Mounting Clamp; Figure 47 BOX652 Mounting Frame for APPK-SET Mounting Kit (Front and Back)

Use APPK-SET106 with the DKE110 mast. This APPK-SET contains also round sleeve spacers.

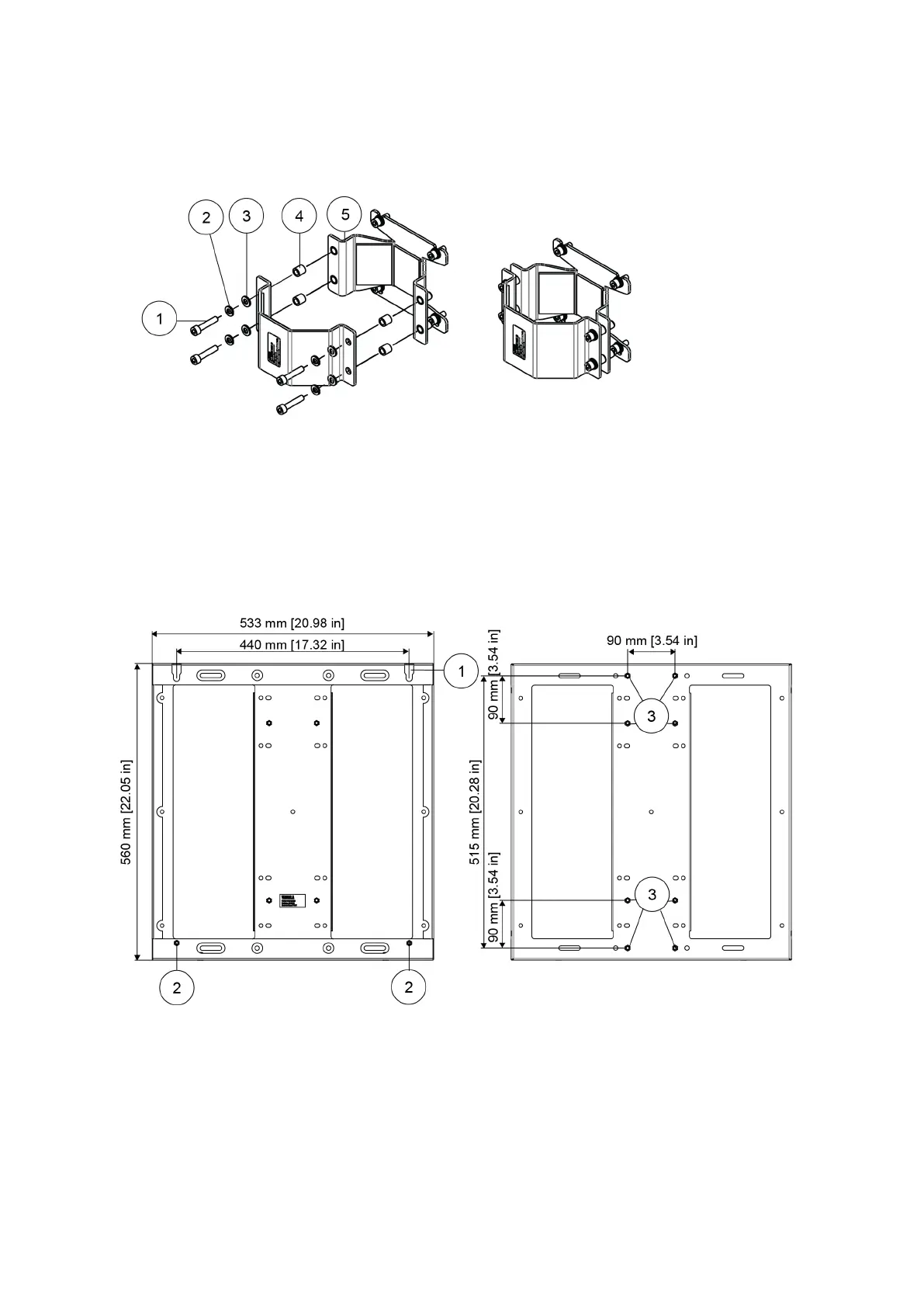

Figure 46 APPK-SET106 Mounting Clamp
1 Hex screw M6×30 DIN912 A4 (16 pcs)
2 Spring lock washer A6 DIN127 A4 (16 pcs)
3 Flat washer A6 DIN125 A4 (16 pcs)
4 Round sleeve spacer M6, D10/6.4 L10, AISI304 (4 pcs)
5 Clamp
Figure 47 BOX652 Mounting Frame for APPK-SET Mounting Kit (Front and Back)
1 Enclosure mounting slot (2 pcs)
2 Hole for enclosure mounting screw (2 pcs)
3 Hole for APPK-SET mounting clamp (8 pcs)
AWS310/AWS310-SITE Installation Manual M211584EN-F
142
