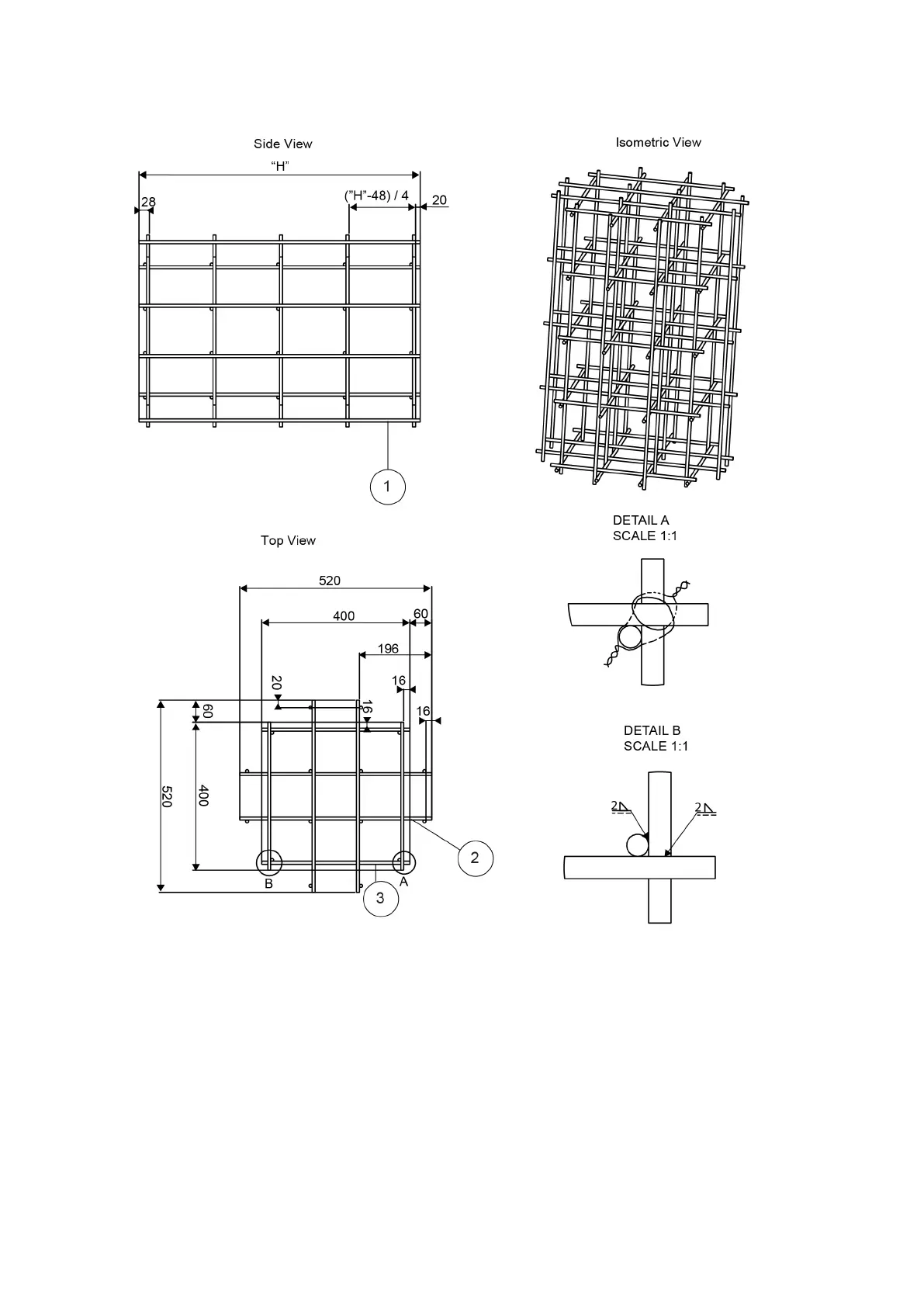

Figure 6 DRW231233 Round Concrete Reinforcing FS11, FD12, CL31, and RG13
1 All bars are joined with steel thread, Ø 1.5 mm (0.16 in) (see detail A) or welded (see
detail B)
2 Item 1: length 400 mm (15.75 in) (20 pcs)
Item 2: length 520 mm (20.47 in) (20 pcs)
Item 3: “H” (final length of the foundation) = H – (2 × 50 mm / 1.97 in)
3 Concrete reinforcing bar Ø 8 mm (0.35 in)
AWS310/AWS310-SITE Installation Manual M211584EN-F
