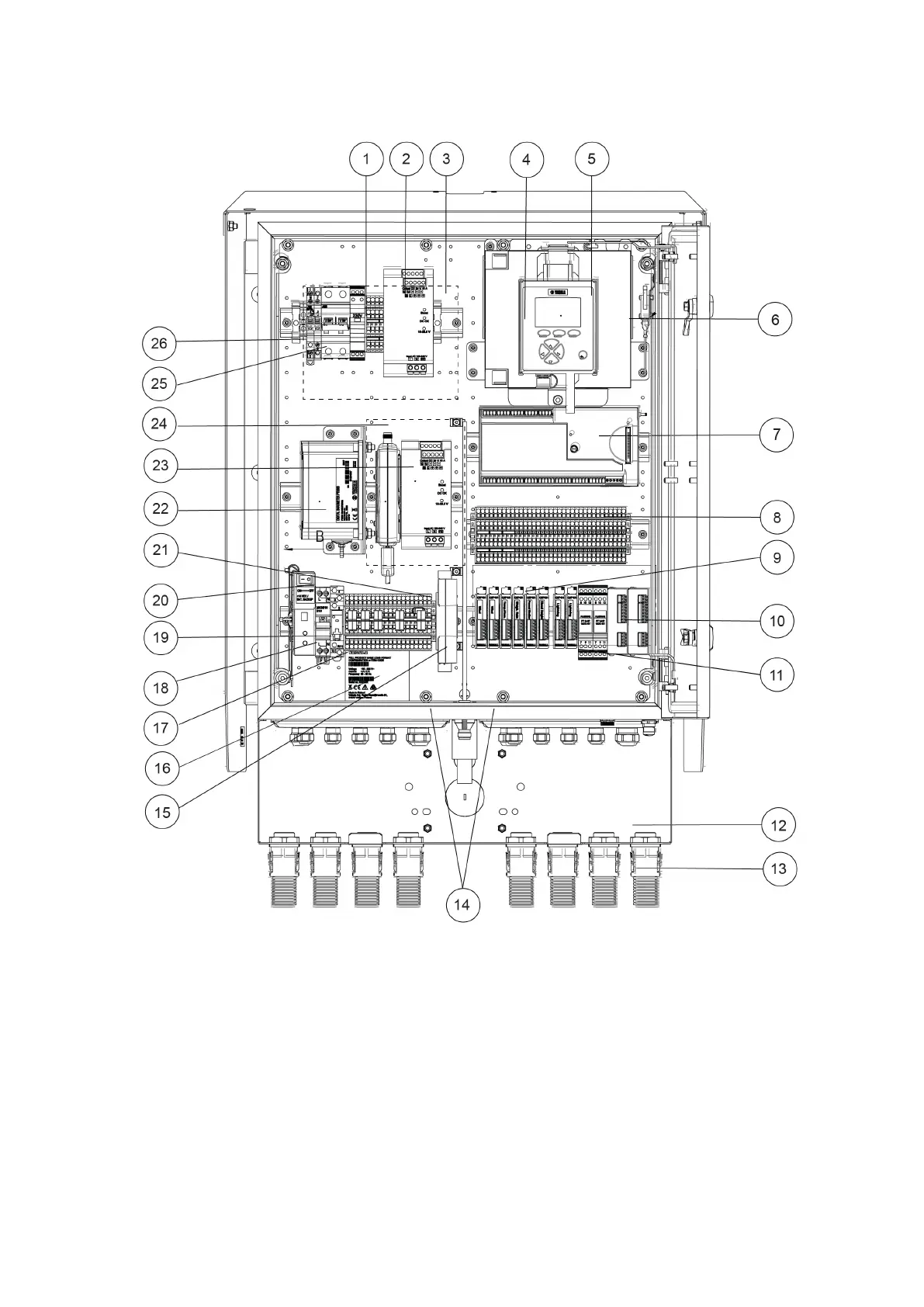

Figure 67 Location of Components in Enclosure for AWS310-SITE (With Steel Flange)

1 AC surge protector

2 AC/DC power supply and terminal strip

3 Place for optional battery (for stations with solar power)

4 Local ﬁxed display QMD202

5 Battery 12 V / 26 Ah

6 Door switch sensor

7 QML data logger

8 Signal terminal strip

Chapter 17 – Electrical Installation

215
