5. Tighten the compression fitting until it locks in place.
Avoid using excessive force.CAUTION!
6. Push the connector cover over the sensor connector.
7. Lead the sensor cable along the sensor support arm and attach it with cable ties.
8. Connect the sensor cable.
More Information
‣
Connecting Sensor and Device Cables (page 218)
11.1.2

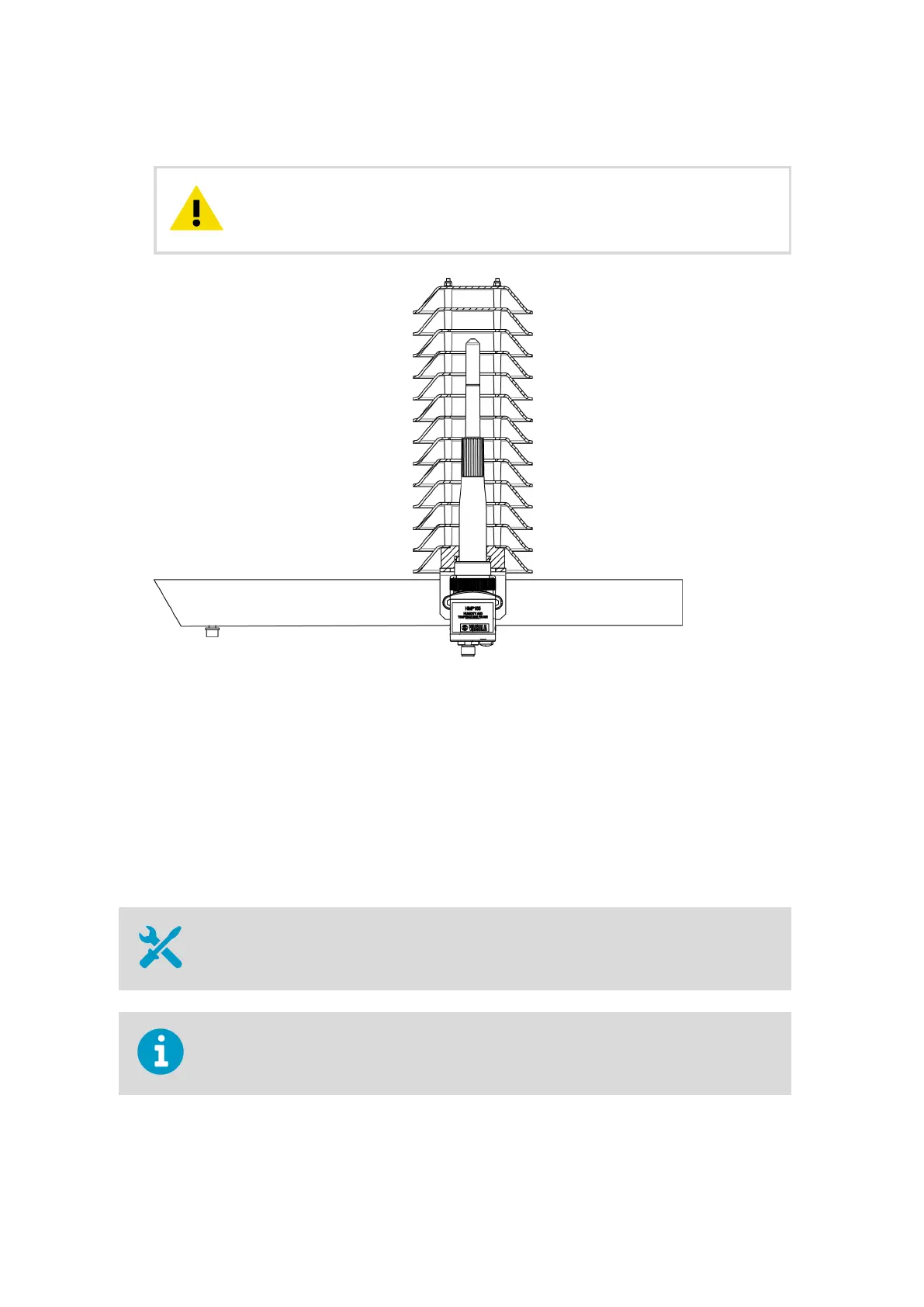

Mounting HMP155 inside Radiation Shield DTR13
5‑mm Allen key
Mount the humidity and temperature probe at the opposite end of the sensor support
from the solar radiation sensor.
AWS310/AWS310-SITE Installation Manual M211584EN-F
112
