Do not remove the instrument or sensor from the mounting kit during alignment.

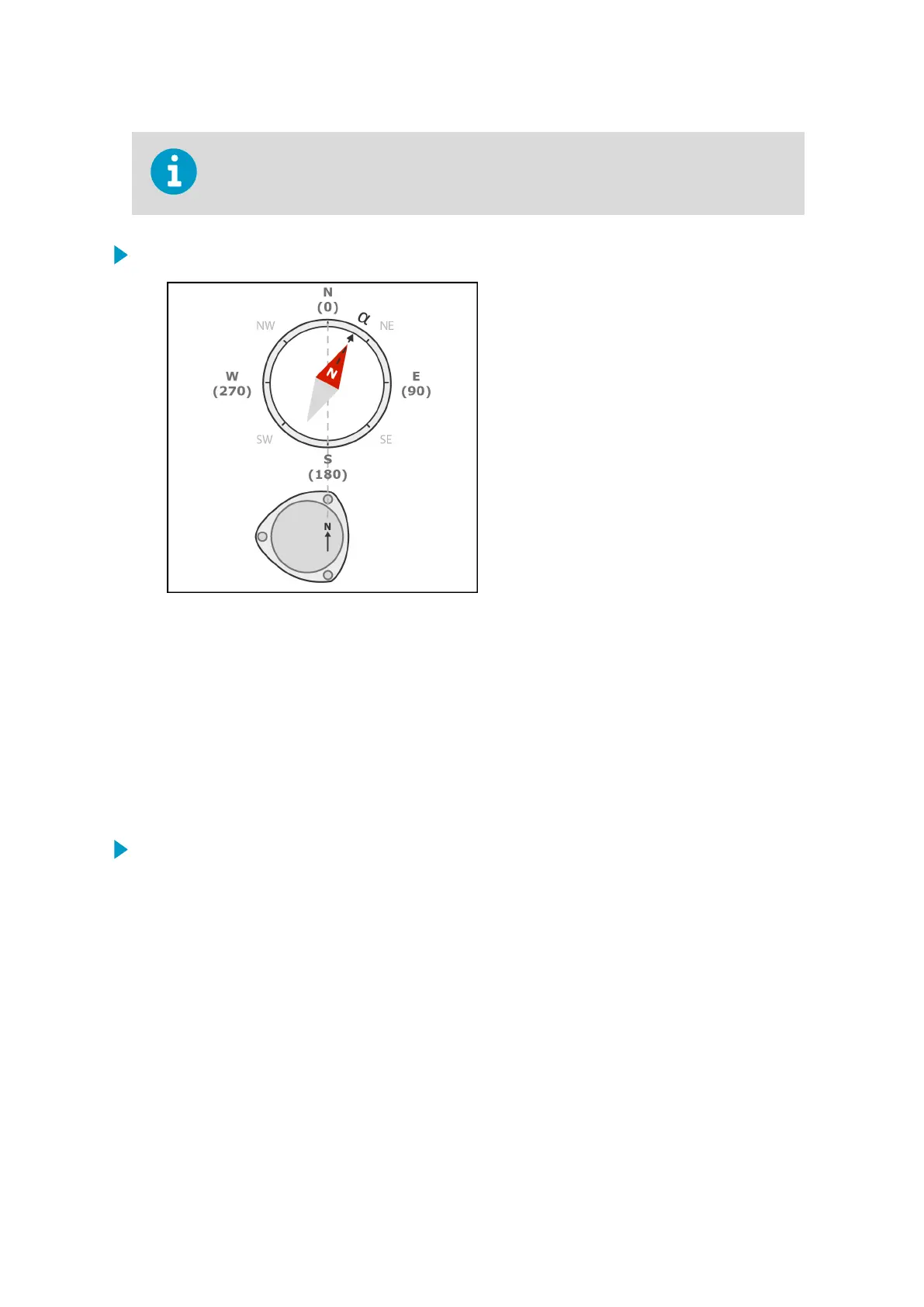

1. Use a compass or other similar method to measure the deviation angle from the North.
2. If possible, rotate the sensor on the mounting kit so that the transducer heads are
exactly in line with the compass and the North arrow points to the North.
3. Tighten the
fixing screw. Use a maximum of 1.5 Nm torque.
6.6
Configuring Wind Direction Oset
If you cannot align the sensor so that the arrow points North, make a wind direction oset
by configuring the deviation angle in the sensor.
1. Mount the sensor to the desired position.
Chapter 6 – Wind Sensor or Weather Transmitter Installation
73
