2. Product Overview

AWS310 consists of enclosure BOX652, optional mast, cabling, sensors, and installation

accessories.

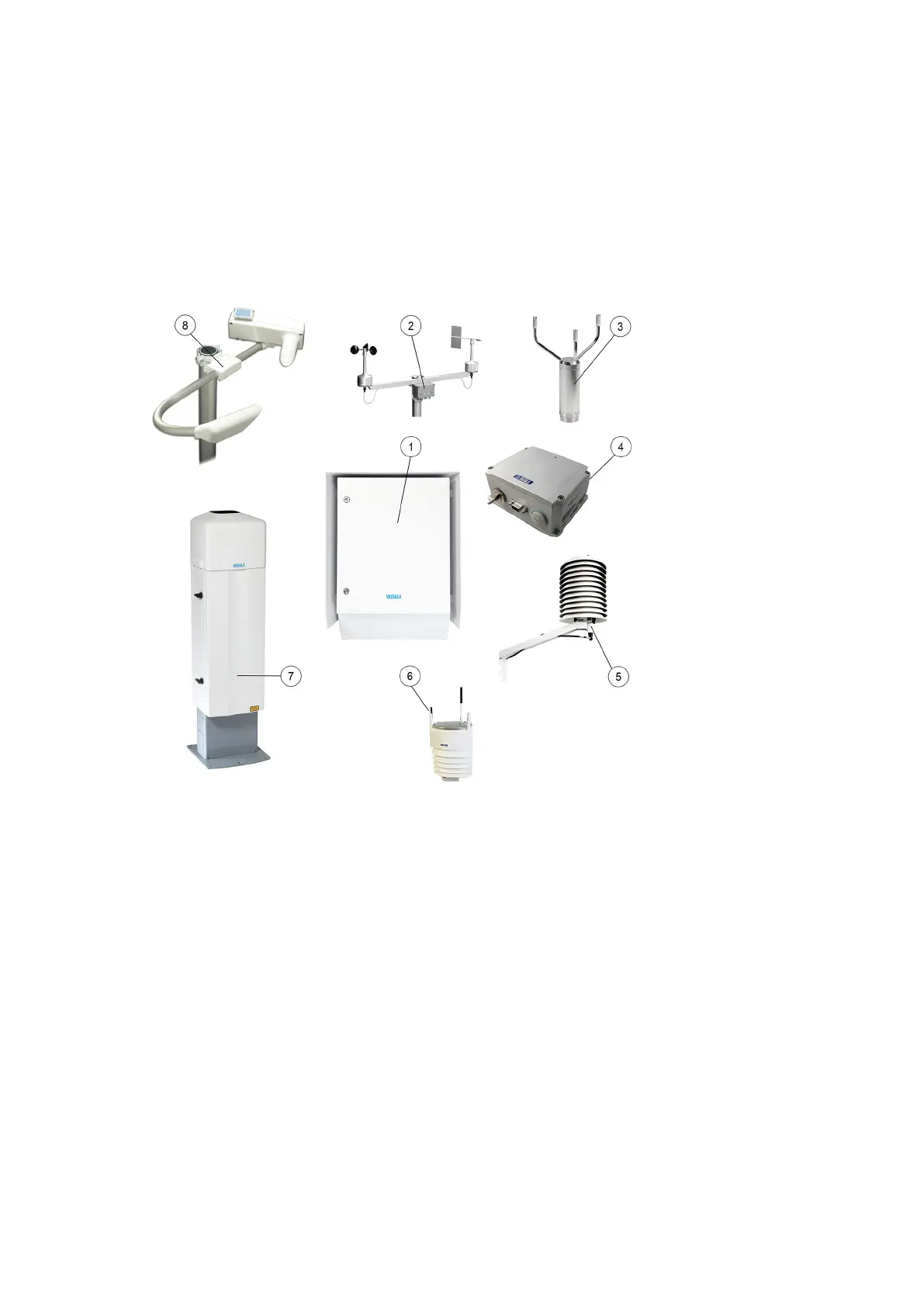

Figure 1 Example Components of AWS310

1 Enclosure BOX652

2 Vaisala Wind Set WA15

3 Vaisala WINDCAP Ultrasonic Wind Sensor WMT700

4 Vaisala BAROCAP Digital Barometer PTB330

5 Vaisala HUMICAP Humidity and Temperature Probe HMP155

6 Vaisala Weather Transmitter WXT520

7 Vaisala Ceilometer CL31

8 Vaisala Present Weather Detector PWD22

More Information

‣

Location of Components in Enclosure (page 213)

Chapter 2 – Product Overview
