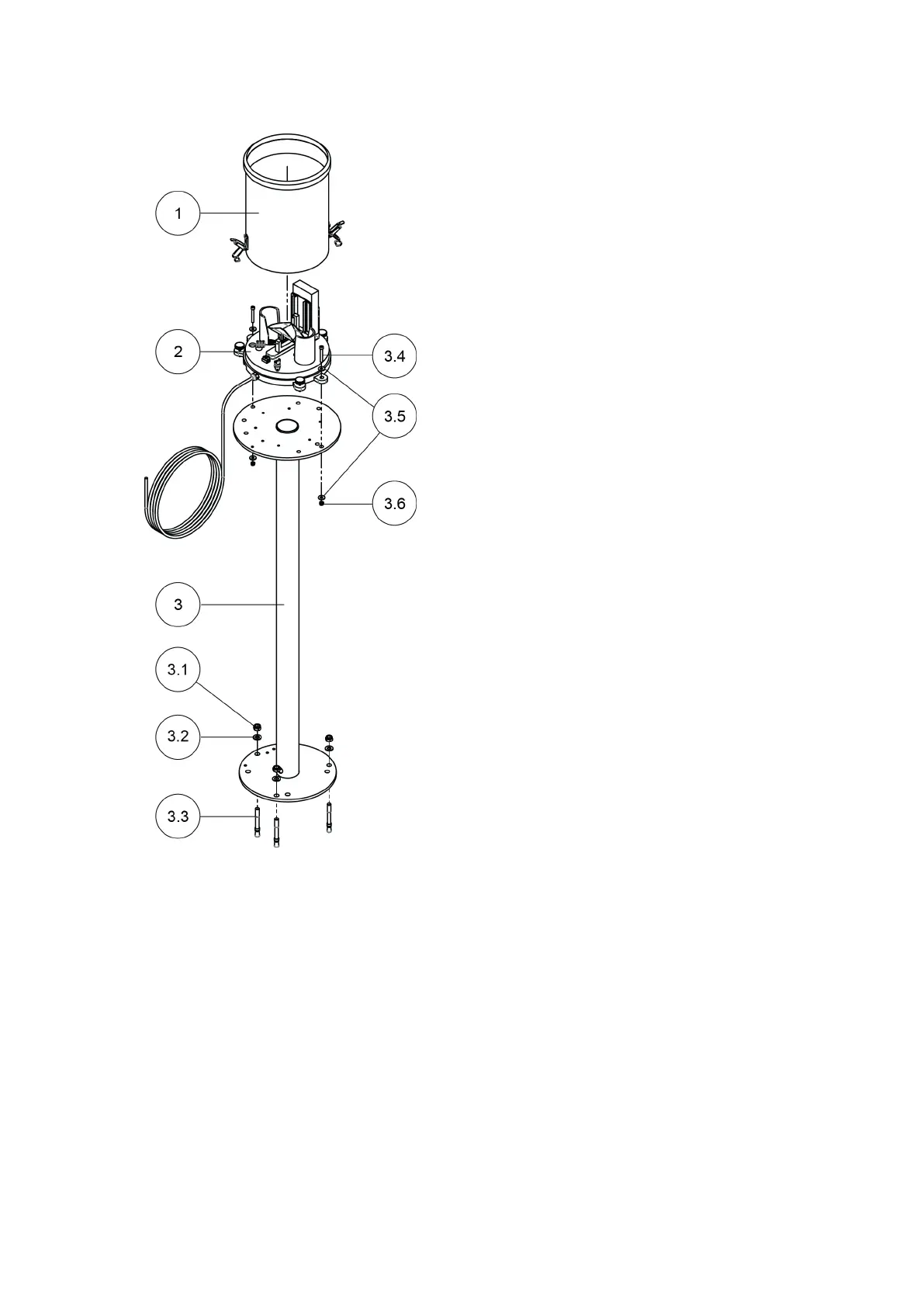

Figure 65 RG13(H) Installation Accessories
1 Outer tube of the rain gauge
2 Rain gauge RG13(H)
3 Rain gauge pedestal
3.1 Hex nut M10 DIN985 A4 (3 pcs)
3.2 Flat washer A10.5 DIN125 A4 (3 pcs)
3.3 Wedge anchor M10×90 stainless steel
(3 pcs)
3.4 Hex screw M6×45 DIN912 A4 (2 pcs)
3.5 Fender washer (4 pcs)
3.6 Hex nut M6 DIN985 A4 (2 pcs)
