6. Push the connector cover over the probe connector.
7. Connect the sensor cable.
More Information
‣
Connecting Sensor and Device Cables (page 218)
11.1.3 Mounting HMP155 to Stevenson Screen
A 10‑meter (33‑foot) sensor cable and an installation kit (221321) are provided for installing
HMP155 into a Stevenson Screen. The Stevenson Screen is normally supplied by the
customer. For more information, see the instructions provided with the installation kit.

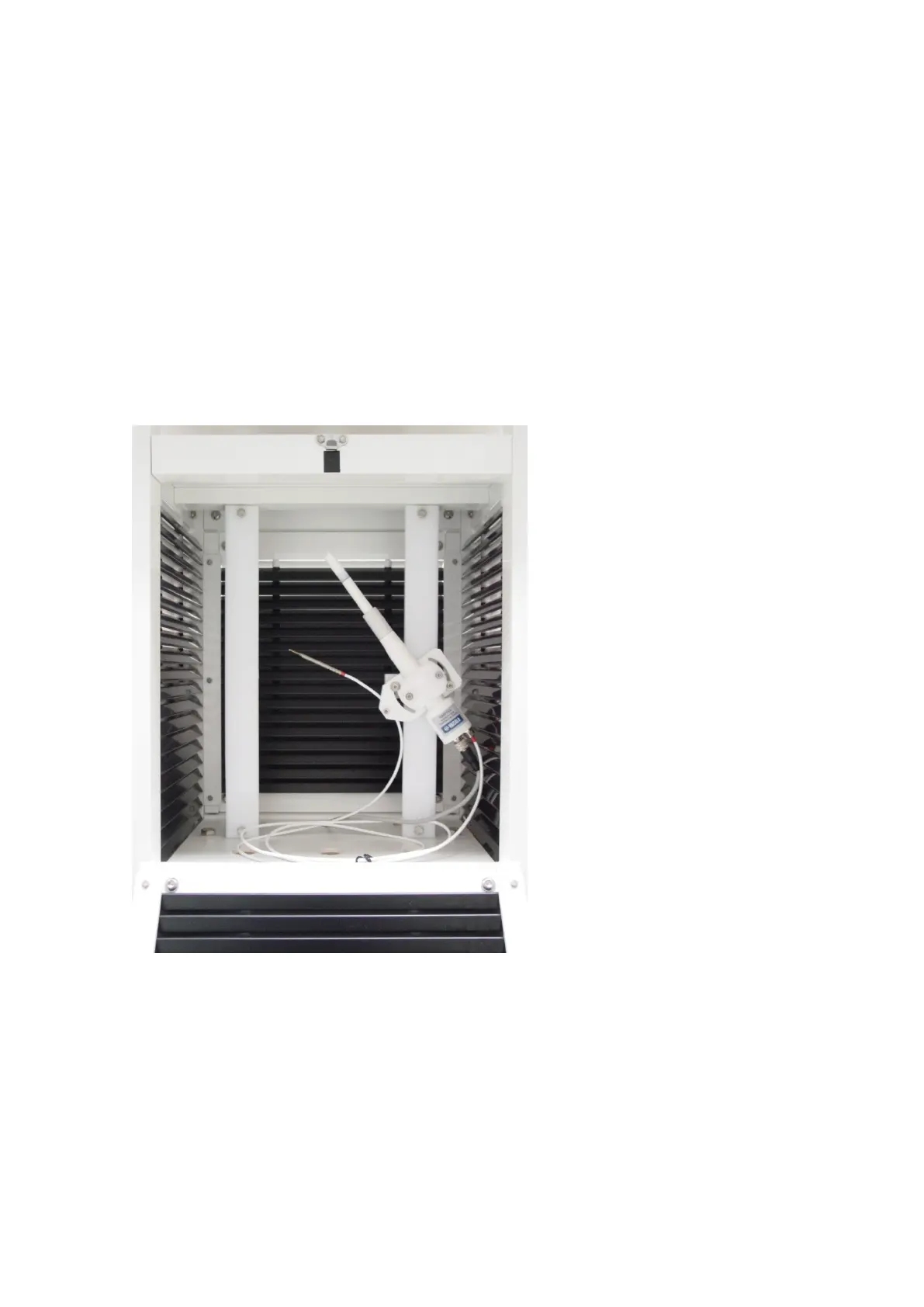

Figure 36 HMP155 with T‑Probe in Stevenson Screen
More Information
‣
Connecting Sensor and Device Cables (page 218)
