Vaisala AWS310-SITE - Installing HMP110

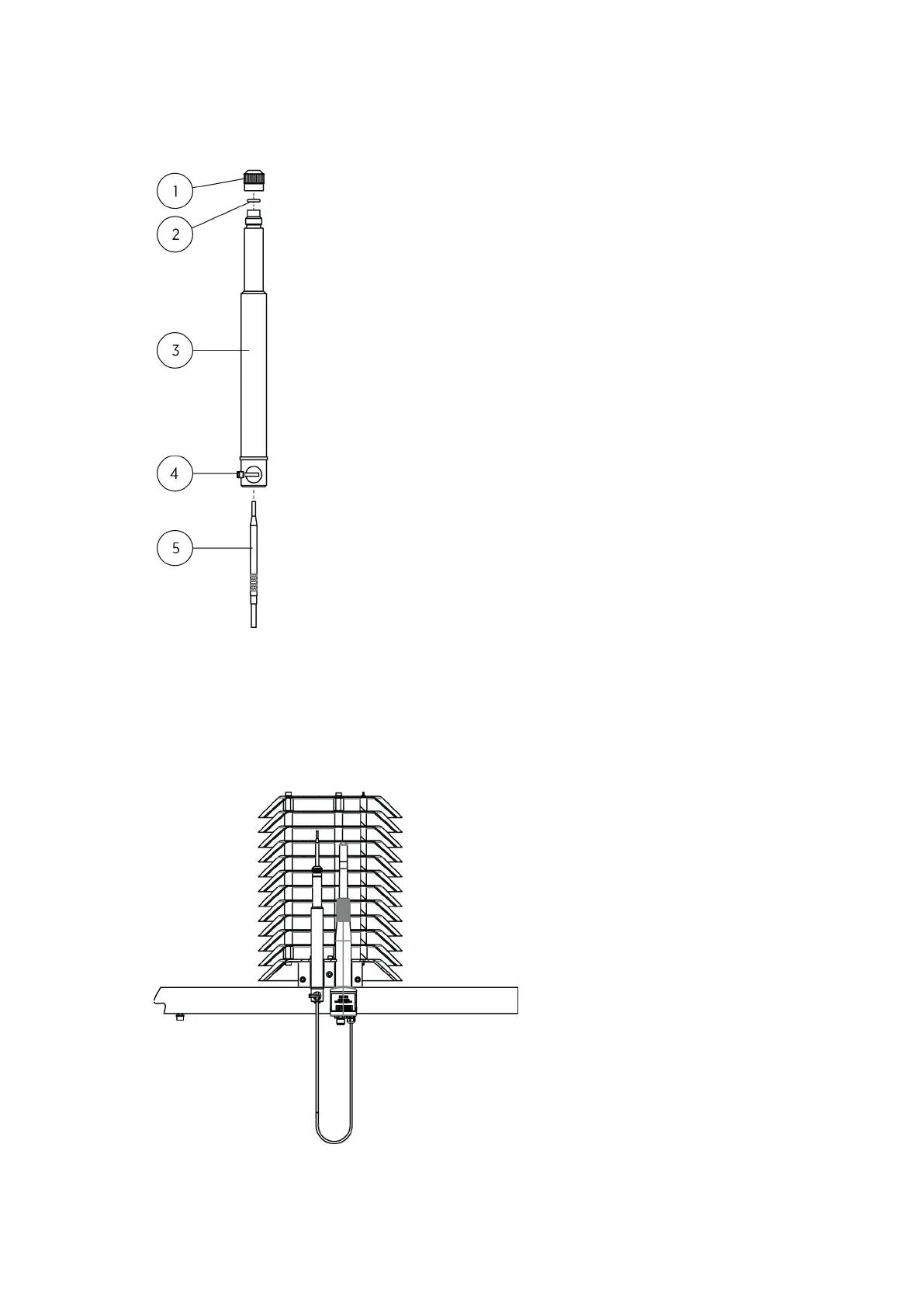

5. Install the optional T-probe.
1 Knob
2 O-ring
3 T-probe adapter
4 Cable tie
5 T-probe
a. Insert the T-probe into to the T-probe adapter.
b. Fasten the T-probe into the adapter using the knob.
c. Fasten the cable to the adapter with a cable tie.
d. Insert the adapter into the smaller outer hole in DTR13.
AWS310/AWS310-SITE Installation Manual M211584EN-F
116
